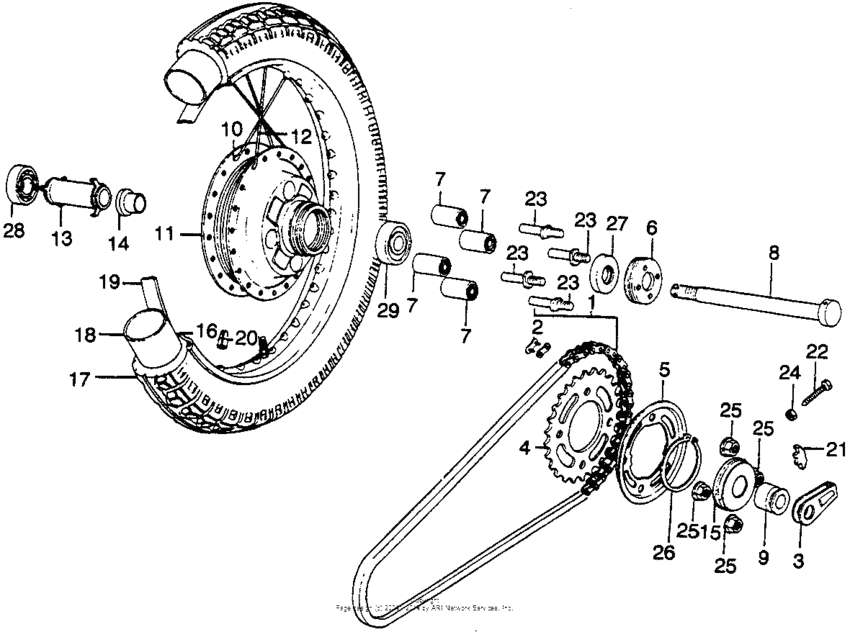

Rear wheel Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40530-375-305
Chain,drive(96le)
|
40530-375-305 |
— | ||
|
2
|
2
40531-341-305 Joint,drive chain |
40531-341-305 |
from US $6 |
||
|
3
|
3
40543-390-000 Adjuster, chain |
40543-390-000 |
US $22.38 |
||
| replacement | |||||
|
3
|
3
95014-18000 Adjuster j,chain |
95014-18000 |
US $16.32 |
||
|
4
|
4
41201-375-000
Sprocket,driven
|
41201-375-000 |
— | ||
|
5
|
5
41211-375-000
Plate,sprocket
|
41211-375-000 |
— | ||
|
6
|
6
41231-283-000 Retainer, bearing |
41231-283-000 |
US $50.32 |
||
|
7
|
7
41241-283-010
Bush
|
41241-283-010 |
— | ||
|
8
|
8
42301-292-010
Axle,rear wheel
|
42301-292-010 |
— | ||
|
9
|
9
42311-283-000 Collar |
42311-283-000 |
US $11.02 |
||
|
10
|
10
42601-283-000 Spoke a, rear |
42601-283-000 |
US $9.77 |
||
|
11
|
11
42602-292-010
Hub, rr. wheel
|
42602-292-010 |
— | ||
|
12
|
12
42604-283-000 Spoke b, rear |
42604-283-000 |
US $10.36 |
||
|
13
|
13
42620-292-000
Coller,axle
|
42620-292-000 |
— | ||
|
14
|
14
42625-283-000
Collar
|
42625-283-000 |
— | ||
|
15
|
15
42633-283-000
Cap
|
42633-283-000 |
— | ||
|
16
|
16
42701-404-771
Rim,rr.wheel
|
42701-404-771 |
— | ||
|
17
|
17
42711-375-671 Tire, rr. (3.75s-18) |
42711-375-671 |
US $60.30 |
||
|
18
|
18
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
18
|
18
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
18
|
18
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
19
|
19
42713-268-003
Flap,x-18a
|
42713-268-003 |
— | ||
| replacement | |||||
|
19
|
19
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
20
|
20
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
20
|
20
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
20
|
20
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
20
|
20
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
21
|
21
52136-375-000
Stopper,adjuster
|
52136-375-000 |
— | ||
|
22
|
22
90119-283-000 Bolt, chain |
90119-283-000 |
from US $11.25 |
||
|
23
|
23
90128-375-000
Bolt,sprocket
|
90128-375-000 |
— | ||
|
24
|
24
90307-283-000 Nut, chain |
90307-283-000 |
from US $3.18 |
||
|
25
|
25
90309-375-003 Nut, flange (12mm) |
90309-375-003 |
from US $7.40 |
||
|
26
|
26
90665-283-000
Cir-crip, 73.8mm
|
90665-283-000 |
— | ||
|
27
|
27
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
28
|
28
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
29
|
29
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
