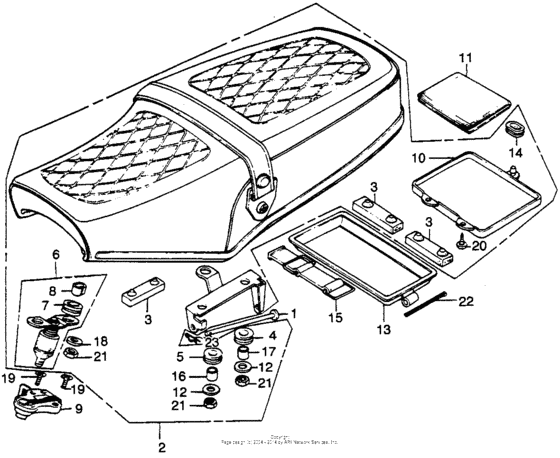

Seat Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
77210-375-770
Leather
|
77210-375-770 |
— | ||
|
1
|
1
77103-369-000
Bar,seat hinge
|
77103-369-000 |
— | ||
|
2
|
2
77200-375-770
Seat assy.,double
|
77200-375-770 |
— | ||
|
3
|
3
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
4
|
4
77206-375-000
Rubber a,seat set
|
77206-375-000 |
— | ||
|
5
|
5
77207-375-000
Rubber b, seat
|
77207-375-000 |
— | ||
|
6
|
6
77220-340-003
Bar assy., seat lock
|
77220-340-003 |
— | ||
|
7
|
7
77228-340-003 Rubber, seat lock bar cushion |
77228-340-003 |
from US $5.48 |
||
|
8
|
8
77229-340-003 Colr, seat lock bar |
77229-340-003 |
from US $3.03 |
||
|
9
|
9
77230-399-007 Lock assy., seat |
77230-399-007 |
US $66.60 |
||
|
10
|
10
77250-342-300
Lid,seat under
|
77250-342-300 |
— | ||
|
11
|
11
77251-342-000 Bag, service book |
77251-342-000 |
from US $4.44 |
||
|
12
|
12
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
13
|
13
83500-375-000
Box,tool
|
83500-375-000 |
— | ||
|
14
|
14
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
15
|
15
83606-356-000 Band, side cover |
83606-356-000 |
from US $17.20 |
||
|
16
|
16
84705-310-000 Collar, rr. fender |
84705-310-000 |
from US $2.15 |
||
|
17
|
17
84706-310-000
Collar b
|
84706-310-000 |
— | ||
|
18
|
18
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
19
|
19
93600-060-120-G ScrewFLAT, 6X12 |
93600-060-120-G |
from US $0.44 |
||
|
20
|
20
93901-25080 ScrewTAPPING, 5X8 |
93901-25080 |
from US $0.37 |
||
|
21
|
21
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
22
|
22
94201-25450
Pin,split,2.5x45
|
94201-25450 |
— | ||
|
23
|
23
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
