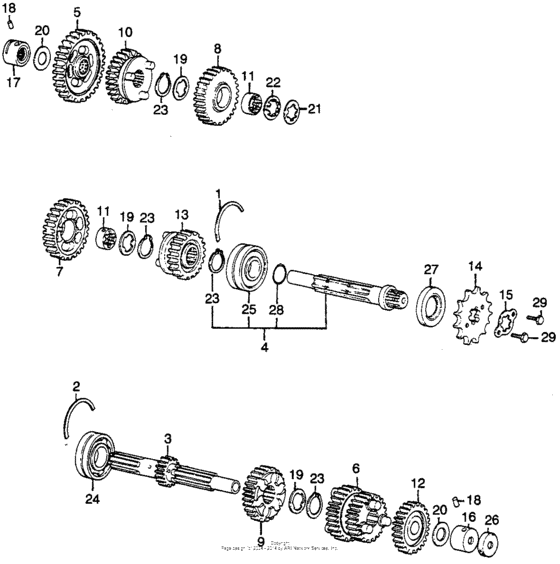

Transmission Diagram Honda CB500 CB500
- Year
- 1976
- Model code
- CB500T A
- Sales region
- USA
- Frame
- CB500T2000001 -
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13491-283-000
Ring
|
13491-283-000 |
— | ||
|
2
|
2
95015-25200 Set ring, 520 |
95015-25200 |
US $1.48 |
||
|
3
|
3
23211-375-000
Mainshaft
|
23211-375-000 |
— | ||
|
4
|
4
23220-292-050
Shaft counter
|
23220-292-050 |
— | ||
|
5
|
5
23421-292-010 Gear,ci |
23421-292-010 |
US $153.34 |
||
|
6
|
6
23431-375-000
Gear,secon third
|
23431-375-000 |
— | ||
|
7
|
7
23441-375-000
Gear,second
|
23441-375-000 |
— | ||
|
8
|
8
23461-375-000
Gear,third
|
23461-375-000 |
— | ||
|
9
|
9
23471-292-030 Gear m4 |
23471-292-030 |
US $145.20 |
||
|
10
|
10
23481-292-030
Gear c4
|
23481-292-030 |
— | ||
|
11
|
11
23485-319-000 Bush,spline,28mm |
23485-319-000 |
US $27.15 |
||
|
12
|
12
23491-292-030 Gear,m.fifth |
23491-292-030 |
US $172.57 |
||
|
13
|
13
23511-292-040
Gear,c.fifth
|
23511-292-040 |
— | ||
|
14
|
14
23801-348-690
Sprocket,drive
|
23801-348-690 |
— | ||
|
15
|
15
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
16
|
16
23931-292-000
Needle brg
|
23931-292-000 |
— | ||
|
17
|
17
23932-292-000
Needle brg
|
23932-292-000 |
— | ||
|
18
|
18
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
19
|
19
90451-286-000
Washer thrust 25
|
90451-286-000 |
— | ||
|
20
|
20
90458-292-000 Washer, thrust, 20mm |
90458-292-000 |
from US $3.55 |
||
|
21
|
21
90461-286-000 Washer b (25mm) |
90461-286-000 |
US $4.74 |
||
|
22
|
22
90462-286-000
Washer lock 25mm
|
90462-286-000 |
— | ||
|
23
|
23
90602-259-010 Circlip (25mm) |
90602-259-010 |
from US $3.85 |
||
|
24
|
24
91001-KE8-003
B/brg n/rad n/com
|
91001-KE8-003 |
— | ||
|
25
|
25
91002-283-000
B/brg n/rad n/com
|
91002-283-000 |
— | ||
|
26
|
26
91203-292-005 Oil seal 8x34x8 |
91203-292-005 |
from US $10.33 |
||
|
27
|
27
91205-283-015 Oil seal,33x57x7 |
91205-283-015 |
from US $13.18 |
||
|
28
|
28
91306-703-000
O ring,24.5mm
|
91306-703-000 |
— | ||
|
29
|
29
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
29
|
29
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
