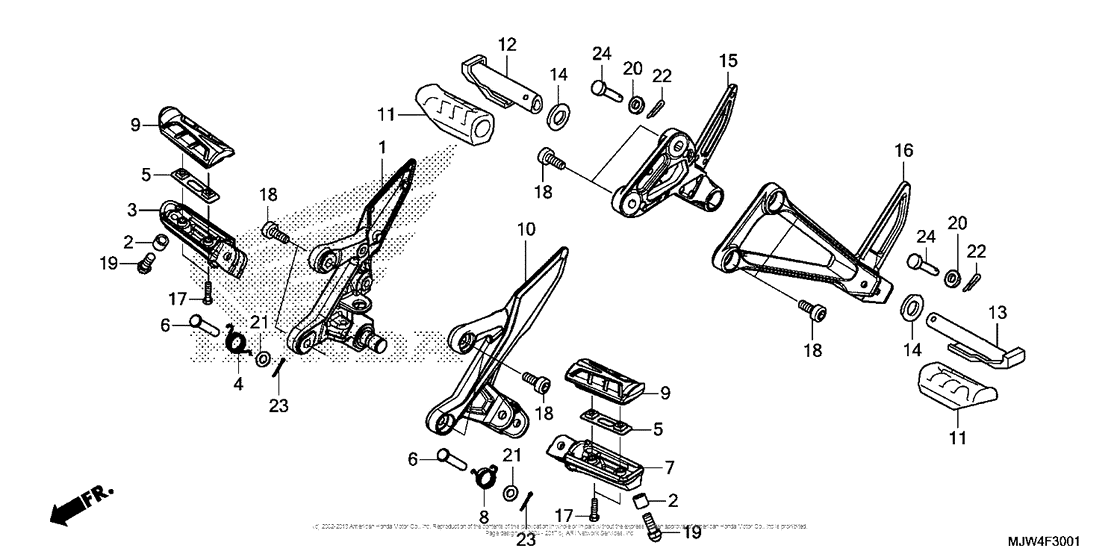

Step (2) Diagram Honda CB500 CB500X
- Year
- 2017
- Model code
- CB500X 3A
- Sales region
- USA
- Frame
- MLHPC466 - H5400001
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50600-MJW-J00 Holder, r. main step |
50600-MJW-J00 |
from US $45.85 |
||
|
2
|
2
50611-MJW-J00 COLLAR (12.7X11) |
50611-MJW-J00 |
from US $1.29 |
||
|
3
|
3
50612-KYJ-305 Arm, r. step |
50612-KYJ-305 |
US $33.01 |
||
|
4
|
4
50617-445-840 Spring, r |
50617-445-840 |
from US $3.11 |
||
|
5
|
5
50619-MM5-000 Plate, step setting |
50619-MM5-000 |
from US $6.93 |
||
|
6
|
6
50639-ML0-010 Pin, step bar |
50639-ML0-010 |
from US $2.50 |
||
|
7
|
7
50642-KYJ-305 Arm, l. step |
50642-KYJ-305 |
US $33.01 |
||
|
8
|
8
50644-445-840 Spring, l |
50644-445-840 |
from US $3.26 |
||
|
9
|
9
50661-MJE-D00 RUBBER, MAIN STEP |
50661-MJE-D00 |
from US $4.74 |
||
|
10
|
10
50700-MJW-J00 Holder, l. main step |
50700-MJW-J00 |
from US $39.05 |
||
|
11
|
11
50710-KYJ-305 Rubber, pillion step |
50710-KYJ-305 |
US $15.16 |
||
|
12
|
12
50711-KYJ-305 Bar, r. pillion step |
50711-KYJ-305 |
US $19.09 |
||
|
13
|
13
50712-KYJ-305 Bar, l. pillion step |
50712-KYJ-305 |
US $18.75 |
||
|
14
|
14
50714-KBA-930 Plate,p step side |
50714-KBA-930 |
from US $2.04 |
||
|
15
|
15
50715-MJW-DK0 HOLDER, R. |
50715-MJW-DK0 |
from US $47.97 |
||
|
16
|
16
50725-MGZ-J00 Holder, l |
50725-MGZ-J00 |
from US $39 |
||
|
17
|
17
90115-MV9-000 Bolt |
90115-MV9-000 |
from US $1.35 |
||
|
18
|
18
90116-MGZ-J00 Bolt, socket (8x22) |
90116-MGZ-J00 |
from US $1.39 |
||
|
19
|
19
92501-08020-0A Bolt, cap (8x20) |
92501-08020-0A |
from US $1.33 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
22
|
22
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
23
|
23
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
24
|
24
9501582000 Pin b |
9501582000 |
from US $1.55 |
