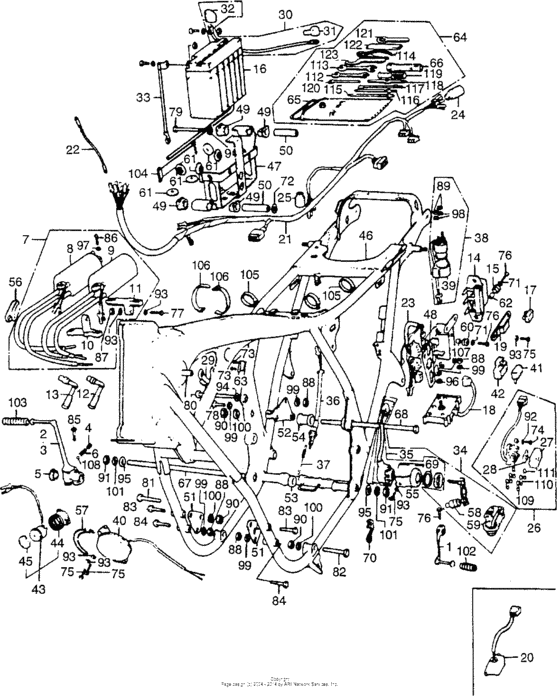

Frame + wire harness Diagram Honda CB550
- Model code
- CB550 A
- Sales region
- USA
- Frame
- CB550K1000001 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-323-010
Pedal,gear chang
|
24700-323-010 |
— | ||
|
2
|
2
28300-404-670
Arm,kick starter
Use up to Frame SN 1022428 |
28300-404-670 |
— | ||
|
4
|
4
28303-310-010
Bolt,kick arm
|
28303-310-010 |
— | ||
|
5
|
5
28305-310-000
Cap,kick arm
|
28305-310-000 |
— | ||
|
6
|
6
28333-310-000
Spring,kick
|
28333-310-000 |
— | ||
|
7
|
7
30500-404-000
Coil assy.,ign
|
30500-404-000 |
— | ||
|
8
|
8
30501-323-003
Coil,r ignition
|
30501-323-003 |
— | ||
|
9
|
9
30502-323-003
Coil,l ignition
|
30502-323-003 |
— | ||
|
10
|
10
30511-300-000
Bracket ignition
|
30511-300-000 |
— | ||
|
11
|
11
30512-323-000
Bracket b,ign
|
30512-323-000 |
— | ||
|
12
|
12
30700-GAR-000 Cap assy. |
30700-GAR-000 |
US $18.63 |
||
|
13
|
13
30700-MC8-000 Cap,noise supr. |
30700-MC8-000 |
US $28.15 |
||
|
14
|
14
31400-300-035
Regulator
|
31400-300-035 |
— | ||
|
15
|
15
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
16
|
16
31500-460-672AH
Battery (12v12)
|
31500-460-672AH |
— | ||
|
18
|
18
31700-333-008
Rectifire,silicon
|
31700-333-008 |
— | ||
|
20
|
20
31800-341-701
Safety unit,motor
|
31800-341-701 |
— | ||
|
21
|
21
32100-374-000
Harness,wire
|
32100-374-000 |
— | ||
|
23
|
23
32105-374-670
Sub-wire harness
|
32105-374-670 |
— | ||
|
24
|
24
32108-046-750 Cover, wire harness connector |
32108-046-750 |
from US $4.29 |
||
|
25
|
25
32108-323-300 Cover,connector |
32108-323-300 |
US $6.02 |
||
|
26
|
26
32110-341-702 Box assy., fuse |
32110-341-702 |
US $48.69 |
||
|
27
|
27
32117-341-702
Cover,fuse box
|
32117-341-702 |
— | ||
|
28
|
28
32118-341-702
Grommet,fuse
|
32118-341-702 |
— | ||
|
29
|
29
32171-323-000
Clip,wire harness
|
32171-323-000 |
— | ||
|
30
|
30
32401-323-000
Cable,bat,starter
|
32401-323-000 |
— | ||
|
31
|
31
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
32
|
32
32412-323-000
Cover,bat.term
|
32412-323-000 |
— | ||
|
33
|
33
32601-323-000
Cable,bat earth
|
32601-323-000 |
— | ||
|
34
|
34
35010-374-671 Key set |
35010-374-671 |
from US $194.45 |
||
|
35
|
35
35100-374-007
Switch,comb.
|
35100-374-007 |
— | ||
|
36
|
36
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
37
|
37
35357-011-000 Spring |
35357-011-000 |
from US $2.96 |
||
|
38
|
38
35850-371-670
Switch, magnetic
|
35850-371-670 |
— | ||
|
39
|
39
35856-323-000
Suspension,switch
|
35856-323-000 |
— | ||
|
40
|
40
38100-300-023 Horn assy |
38100-300-023 |
US $107.44 |
||
|
41
|
41
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
41
|
41
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
42
|
42
38306-107-670
Suspention,winker
|
38306-107-670 |
— | ||
|
43
|
43
38400-341-674
Buzzer,winker
|
38400-341-674 |
— | ||
|
44
|
44
38402-341-671 Cover,buzzer |
38402-341-671 |
US $16.19 |
||
|
45
|
45
38403-341-672 Plate, winker buzzer |
38403-341-672 |
from US $4.76 |
||
|
46
|
46
50100-323-674-B
Frame *nh1*
|
50100-323-674-B |
— | ||
|
47
|
47
50325-323-040
Box,battery
|
50325-323-040 |
— | ||
|
48
|
48
50330-374-000
Plate,electric
|
50330-374-000 |
— | ||
|
49
|
49
50331-323-000
Cushion,bat.box
|
50331-323-000 |
— | ||
|
50
|
50
50332-323-000
Collar,bat.box
|
50332-323-000 |
— | ||
|
51
|
51
50351-323-010-B
Bracket,fr engine
|
50351-323-010-B |
— | ||
|
52
|
52
50356-374-000
Bracket, rr. eng hgr
Use up to Frame SN 1021685 |
50356-374-000 |
— | ||
|
52
|
52
50356-374-010
Bracket,rear eng
Use from Frame SN 1021686 |
50356-374-010 |
— | ||
|
53
|
53
50357-323-010
Collar,r eng un
|
50357-323-010 |
— | ||
|
54
|
54
50359-323-010
Collar,l eng un
|
50359-323-010 |
— | ||
|
55
|
55
50375-323-020
Bracket,main sw
|
50375-323-020 |
— | ||
|
56
|
56
50400-323-000
Protecter,ign
|
50400-323-000 |
— | ||
|
57
|
57
50462-323-010 Clamp, Cable |
50462-323-010 |
US $12.14 |
||
|
58
|
58
35010-230-010
Switch kit,comb.
|
35010-230-010 |
— | ||
|
59
|
59
77230-107-711 Seat lock assy |
77230-107-711 |
US $169.98 |
||
|
60
|
60
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
61
|
61
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.48 |
||
|
62
|
62
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
63
|
63
87506-374-670
Mark
|
87506-374-670 |
— | ||
|
64
|
64
89010-390-000
Tool assy
|
89010-390-000 |
— | ||
|
65
|
65
89101-ME5-670
Bag, tool
Use up to Frame SN 1022272 |
89101-ME5-670 |
— | ||
|
66
|
66
89216-323-000
Wrench,plug
|
89216-323-000 |
— | ||
|
67
|
67
90107-323-000
Bolt,rr engine
|
90107-323-000 |
— | ||
|
68
|
68
90108-323-000
Bolt,rr eng upper
|
90108-323-000 |
— | ||
|
71
|
71
90581-831-650 Washer (18mm) |
90581-831-650 |
from US $1.55 |
||
|
72
|
72
90582-703-000
Washer, 8mm
|
90582-703-000 |
— | ||
|
73
|
73
90841-001-000 Screw, rivet (1.5x5) |
90841-001-000 |
from US $2.19 |
||
|
74
|
74
92101-05014-0A Bolt, hex. (5x14) |
92101-05014-0A |
from US $0.37 |
||
|
75
|
75
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
75
|
75
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
75
|
75
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
76
|
76
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
77
|
77
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
78
|
78
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
79
|
79
92101-08065-0A Bolt, hex. (8x65) |
92101-08065-0A |
US $3.45 |
||
|
80
|
80
92101-08100-0A Bolt,hex.,8x100 |
92101-08100-0A |
US $1.10 |
||
|
81
|
81
92200-10050-0A Bolt,hex 10x50 |
92200-10050-0A |
US $0.81 |
||
|
82
|
82
92200-10080-0A
Bolt 10x80
|
92200-10080-0A |
— | ||
|
83
|
83
93101-080-500-A
Bolt, hex. (8x50)
|
93101-080-500-A |
— | ||
|
84
|
84
93000-080-550-A Bolt,hex 8x55 |
93000-080-550-A |
US $0.70 |
||
|
85
|
85
93201-080-320-A
Bolt hex 8x32
|
93201-080-320-A |
— | ||
|
86
|
86
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
87
|
87
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
88
|
88
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
89
|
89
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
90
|
90
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
91
|
91
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
92
|
92
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
93
|
93
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
94
|
94
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
95
|
95
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
96
|
96
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
97
|
97
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
98
|
98
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
99
|
99
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
100
|
100
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
101
|
101
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
102
|
102
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
103
|
103
28311-329-000 Rubber,kickUse from Frame SN 1022429 |
28311-329-000 |
from US $7.84 |
||
|
103
|
103
9501152000 Rubber bUse up to Frame SN 1022428 |
9501152000 |
from US $1.33 |
||
|
104
|
104
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
||
|
105
|
105
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.78 |
||
|
106
|
106
9501461200 Band a2, wire |
9501461200 |
from US $1.30 |
||
|
107
|
107
95020-61630 Collar a (6.3mm) |
95020-61630 |
US $0.52 |
||
|
108
|
108
96211-10000 Ball |
96211-10000 |
from US $0.22 |
||
|
109
|
109
98200-10500 Fuse a5A |
98200-10500 |
from US $0.59 |
||
|
110
|
110
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
|
111
|
111
98200-11500 Fuse (15a) |
98200-11500 |
from US $0.59 |
||
|
112
|
112
99001-10120 Spanner |
99001-10120 |
from US $8.62 |
||
|
113
|
113
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
114
|
114
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
114
|
114
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
115
|
115
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
116
|
116
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.41 |
||
|
117
|
117
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
118
|
118
9900340000 Lever |
9900340000 |
from US $0.89 |
||
|
119
|
119
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
120
|
120
9900502000 Bar b, handle |
9900502000 |
from US $3.77 |
||
|
121
|
121
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
122
|
122
99006-26000
Eye,wrench,26
|
99006-26000 |
— | ||
|
123
|
123
99007-45000 Spanner,pin,45mm |
99007-45000 |
from US $4.29 |
||
