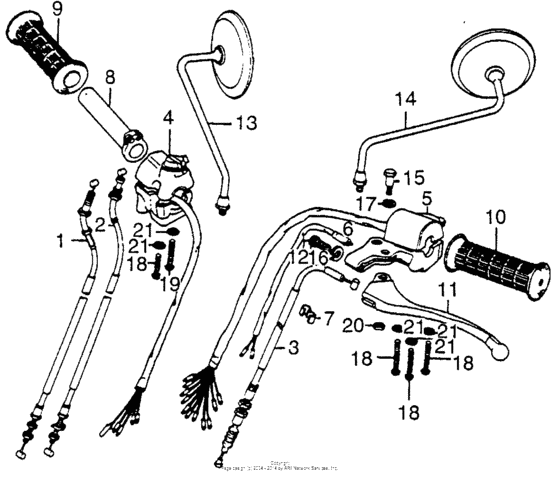

Handle switch + lever + cables Diagram Honda CB550
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F1109886 -
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-341-000 Cable a,throttle |
17910-341-000 |
from US $46.18 |
||
|
2
|
2
17920-323-000
Cable b,throttle
|
17920-323-000 |
— | ||
|
3
|
3
22870-374-000
Cable,clutch
|
22870-374-000 |
— | ||
|
4
|
4
35130-377-P00 Switch, starter stop |
35130-377-P00 |
from US $149.43 |
||
|
5
|
5
35200-390-671
Switch,turnsignal
|
35200-390-671 |
— | ||
|
6
|
6
35340-329-003 Switch, fr. stop |
35340-329-003 |
from US $13.74 |
||
|
7
|
7
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $7.80 |
||
|
8
|
8
53141-300-010 Pipe, throttle grip |
53141-300-010 |
from US $13.87 |
||
|
9
|
9
53165-342-670 Rubber,r grip |
53165-342-670 |
from US $19.07 |
||
|
10
|
10
53166-342-670 Rubber,l grip |
53166-342-670 |
from US $16.46 |
||
|
11
|
11
53178-369-700 Lever,strg.handle |
53178-369-700 |
from US $23.66 |
||
|
12
|
12
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.74 |
||
|
13
|
13
88110-333-611 R.back mirror |
88110-333-611 |
US $45.29 |
||
|
14
|
14
88120-333-611 L.back mirror |
88120-333-611 |
US $42.42 |
||
|
15
|
15
90114-310-000 Bolt |
90114-310-000 |
from US $5.92 |
||
|
16
|
16
90321-315-670 Nut, fixing |
90321-315-670 |
from US $6.07 |
||
|
17
|
17
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.75 |
||
|
18
|
18
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
19
|
19
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
