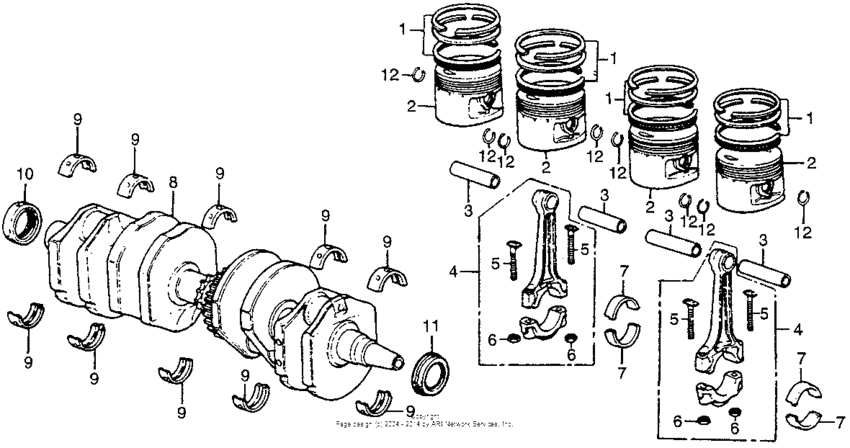

Crankshaft + piston Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-374-000 Ring set (std) |
13011-374-000 |
US $53.08 |
||
|
1
|
1
13021-374-000
Ring set (os) (0.25)
(Optional). |
13021-374-000 |
— | ||
|
1
|
1
13031-374-000 Ring set (os) (0.50)(Optional). |
13031-374-000 |
US $53.40 |
||
|
1
|
1
13041-374-000
Ring set (os) (0.75)
(Optional). |
13041-374-000 |
— | ||
|
1
|
1
13051-374-000
Ring set (1.00)
(Optional). |
13051-374-000 |
— | ||
|
2
|
2
13101-374-000 Piston (std) |
13101-374-000 |
US $107.92 |
||
|
2
|
2
13102-374-000
Piston (os) (0.25)
(Optional). |
13102-374-000 |
— | ||
|
2
|
2
13103-374-000
Piston (os) (0.50)
(Optional). |
13103-374-000 |
— | ||
|
2
|
2
13104-374-000
Piston (0.75)
(Optional). |
13104-374-000 |
— | ||
|
2
|
2
13105-374-000
Piston (1.00)
(Optional). |
13105-374-000 |
— | ||
|
3
|
3
13111-440-000 Pin, piston |
13111-440-000 |
from US $13.62 |
||
|
4
|
4
13204-323-000
Rod d,connecting
|
13204-323-000 |
— | ||
|
4
|
4
13205-323-000
Rod e,connecting
|
13205-323-000 |
— | ||
|
4
|
4
13206-323-000 Rod f,connecting |
13206-323-000 |
US $134.03 |
||
|
5
|
5
13213-KV0-000 Bolt, connecting rodUse from Engine SN 1155614 |
13213-KV0-000 |
from US $5.92 |
||
|
5
|
5
13213-333-003 Bolt,conn.rodUse up to Engine SN 1155613 |
13213-333-003 |
US $16.43 |
||
|
6
|
6
13214-300-000 Nut,conrod |
13214-300-000 |
US $7.99 |
||
|
7
|
7
13215-323-003 Bearing a,conn |
13215-323-003 |
from US $13.76 |
||
|
7
|
7
13215-426-003 Brg a,cnrod*black |
13215-426-003 |
US $13.74 |
||
|
7
|
7
13216-426-003 Brg b,cnrod*brown |
13216-426-003 |
US $13.74 |
||
|
7
|
7
13217-426-003
Brg c,cnrod*green
|
13217-426-003 |
— | ||
|
7
|
7
13218-323-003
Bearing d,conn
|
13218-323-003 |
— | ||
| replacement | |||||
|
7
|
7
13218-426-003
Brg d,cnrod*yelow
|
13218-426-003 |
— | ||
|
8
|
8
13300-323-000
Crankshaft
|
13300-323-000 |
— | ||
|
9
|
9
13315-323-000
Bearing a,shaft
|
13315-323-000 |
— | ||
|
9
|
9
13316-323-000 Bearing b,shaft |
13316-323-000 |
US $17.32 |
||
|
9
|
9
13317-323-000 Bearing c,shaft |
13317-323-000 |
US $17.32 |
||
|
9
|
9
13318-323-000
Bearing d,shaft
|
13318-323-000 |
— | ||
|
10
|
10
91201-300-003 Oil seal |
91201-300-003 |
from US $13.84 |
||
|
11
|
11
91201-323-005 Oil seal 30x45x8 |
91201-323-005 |
from US $11.54 |
||
|
12
|
12
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
||
