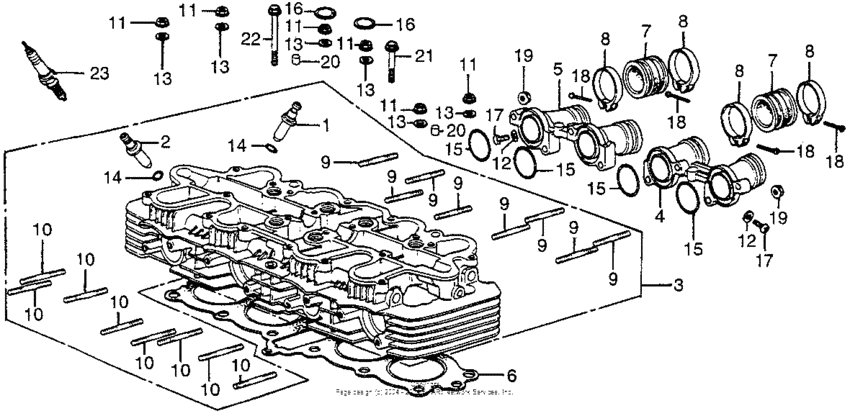

Cylinder head Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12023-465-405 Guide, valve |
12023-465-405 |
from US $13.91 |
||
|
2
|
2
12023-324-405 Guide, ex. valve |
12023-324-405 |
US $31.99 |
||
|
3
|
3
12200-374-000
Cylinder head
|
12200-374-000 |
— | ||
|
4
|
4
12241-323-000
Manifold a, in.
|
12241-323-000 |
— | ||
|
5
|
5
12242-323-000 Manifold b, in. |
12242-323-000 |
US $49.92 |
||
|
6
|
6
12251-374-306
Gasket, cyl hd
|
12251-374-306 |
— | ||
|
7
|
7
16211-323-000 Insulator,carb |
16211-323-000 |
from US $14.96 |
||
|
8
|
8
17256-053-010 Band,connect.tube |
17256-053-010 |
US $6.81 |
||
|
9
|
9
90043-323-300
Bolt,stud 6x32
|
90043-323-300 |
— | ||
|
10
|
10
90044-323-300 Bolt,stud 6x40 |
90044-323-300 |
from US $4.09 |
||
|
11
|
11
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
12
|
12
90452-323-000 Washer, sealing, 5mm |
90452-323-000 |
from US $2.22 |
||
|
13
|
13
90485-035-000 Washer, 14m/m |
90485-035-000 |
from US $2.03 |
||
|
14
|
14
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
15
|
15
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
16
|
16
91318-300-013 Rubber,sealing |
91318-300-013 |
from US $5.33 |
||
|
17
|
17
93500-050-060-A ScrewPAN, 5X6 |
93500-050-060-A |
from US $0.37 |
||
|
18
|
18
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
9430210160 Pin b, dowel, 10x16 |
9430210160 |
from US $1.04 |
||
|
21
|
21
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
||
|
22
|
22
95701-0606500 Bolt, flange, 6x65 |
95701-0606500 |
from US $0.81 |
||
|
23
|
23
98069-57717 Plug,spark |
98069-57717 |
from US $3.57 |
