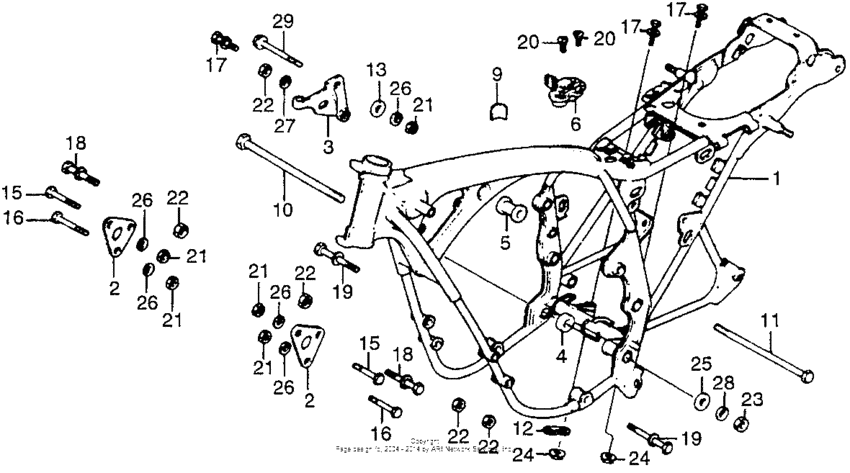

Frame Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-390-780-B
Frame *nh1*
|
50100-390-780-B |
— | ||
|
2
|
2
50351-323-010-B
Bracket,fr engine
|
50351-323-010-B |
— | ||
|
3
|
3
50356-374-010
Bracket,rear eng
|
50356-374-010 |
— | ||
|
4
|
4
50357-323-010
Collar,r eng un
|
50357-323-010 |
— | ||
|
5
|
5
50359-323-010
Collar,l eng un
|
50359-323-010 |
— | ||
|
6
|
6
77230-399-007 Lock assy., seatUse up to Frame SN 2114671 |
77230-399-007 |
US $66.60 |
||
|
9
|
9
87506-390-670
Mark,battery
|
87506-390-670 |
— | ||
|
10
|
10
90107-390-000
Bolt,rr.engine
|
90107-390-000 |
— | ||
|
11
|
11
90108-323-000
Bolt,rr eng upper
|
90108-323-000 |
— | ||
|
12
|
12
90514-323-000
Washer,bat guide
|
90514-323-000 |
— | ||
|
13
|
13
90582-703-000
Washer, 8mm
|
90582-703-000 |
— | ||
|
15
|
15
93101-080-500-A
Bolt, hex. (8x50)
|
93101-080-500-A |
— | ||
|
16
|
16
93000-080-550-A Bolt,hex 8x55 |
93000-080-550-A |
US $0.70 |
||
|
17
|
17
93481-080-400-0 Bolt-washer,8x40 |
93481-080-400-0 |
US $0.74 |
||
|
18
|
18
93482-100-500-0 Bolt-washer,10x50 |
93482-100-500-0 |
US $0.89 |
||
|
19
|
19
93482-100-800-0
Bolt-washer,10x80
|
93482-100-800-0 |
— | ||
|
20
|
20
93600-060-160-G ScrewFLAT, 6X16 |
93600-060-160-G |
from US $0.44 |
||
|
21
|
21
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
22
|
22
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
23
|
23
94030-12000 Nut, hex., 12mm |
94030-12000 |
from US $0.59 |
||
|
24
|
24
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
||
|
25
|
25
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
27
|
27
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
28
|
28
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
29
|
29
95701-0810000 Bolt, flange (8x100) |
95701-0810000 |
from US $1.24 |
