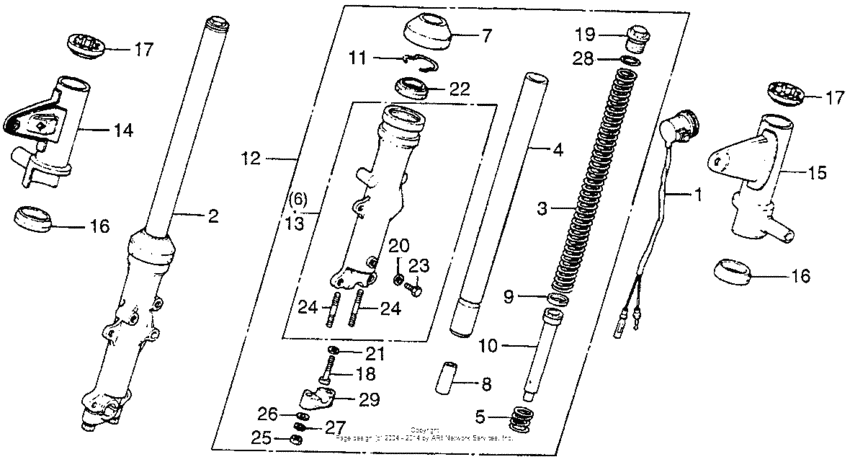

Front fork Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38400-341-674
Buzzer,winker
|
38400-341-674 |
— | ||
|
2
|
2
51400-404-003
Fork assy.,r.fr.
|
51400-404-003 |
— | ||
|
3
|
3
51401-404-003
Spring,fr.cushion
|
51401-404-003 |
— | ||
|
4
|
4
51410-404-003
Pipe,front fork
|
51410-404-003 |
— | ||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51421-393-003
Case,right bottom
|
51421-393-003 |
— | ||
|
7
|
7
51425-375-003 Dust seal,fr fork |
51425-375-003 |
US $27.06 |
||
|
8
|
8
51432-371-003
Piece, oil lock
|
51432-371-003 |
— | ||
|
9
|
9
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
10
|
10
51440-404-003
Pipe,fr.fork bot.
|
51440-404-003 |
— | ||
|
11
|
11
51447-KL4-951 Ring |
51447-KL4-951 |
from US $3.11 |
||
|
12
|
12
51500-404-003
Fork assy.,l.fr.
|
51500-404-003 |
— | ||
|
13
|
13
51521-393-003
Case,l.bottom
|
51521-393-003 |
— | ||
|
14
|
14
51602-404-670
Cover,r.fr.fork
|
51602-404-670 |
— | ||
|
15
|
15
51606-404-670
Cover,l.fr.fork
|
51606-404-670 |
— | ||
|
16
|
16
51622-292-010 Cushion,forkcoverUse up to Frame SN 2112169 |
51622-292-010 |
from US $7.99 |
||
|
16
|
16
51622-323-000 Cushion b,coverUse from Frame SN 2112170 |
51622-323-000 |
US $9.28 |
||
|
17
|
17
61315-340-000
Cushion,head lt.
|
61315-340-000 |
— | ||
|
18
|
18
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
19
|
19
90123-300-000 Bolt,front fork |
90123-300-000 |
from US $39.30 |
||
|
20
|
20
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
21
|
21
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
22
|
22
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
23
|
23
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
24
|
24
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
25
|
25
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
26
|
26
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
27
|
27
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
28
|
28
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
29
|
29
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
