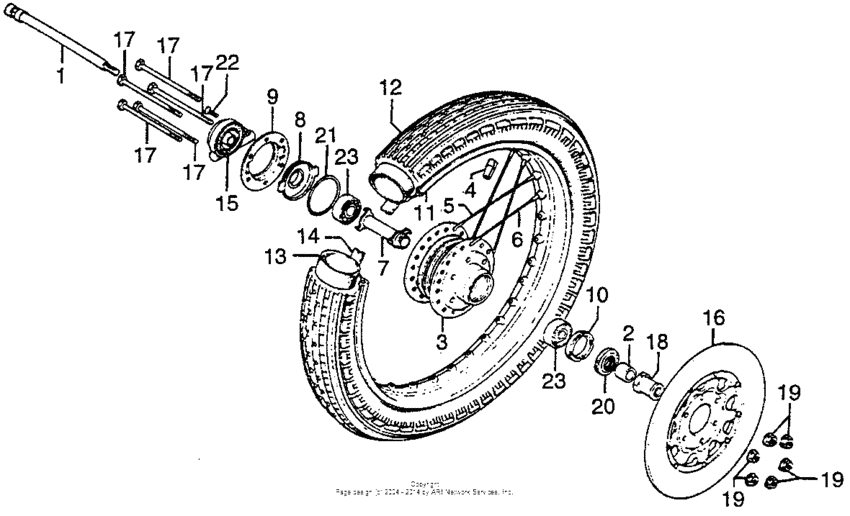

Front wheel + disc Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-425-870
Axle,fr.wheel
|
44301-425-870 |
— | ||
|
2
|
2
44311-300-000
Collar fr wheel
|
44311-300-000 |
— | ||
| replacement | |||||
|
2
|
2
44311-371-980
Collar,wheel side
|
44311-371-980 |
— | ||
|
3
|
3
44601-300-040
Hub,front.wheel
|
44601-300-040 |
— | ||
|
4
|
4
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
4
|
4
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
4
|
4
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
4
|
4
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
5
|
5
97451-692-461-0 Spoke, bs 8x203 |
97451-692-461-0 |
from US $2.89 |
||
|
6
|
6
97B11-692-451-0 Spoke, bs 8x202.5 |
97B11-692-451-0 |
from US $2.89 |
||
|
7
|
7
44620-300-020
Collar fr axle
|
44620-300-020 |
— | ||
|
8
|
8
44641-375-000
Retainer,gear box
|
44641-375-000 |
— | ||
|
9
|
9
44642-300-020
Cover,gearbox ret
|
44642-300-020 |
— | ||
|
10
|
10
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
11
|
11
44701-405-771 Rim,fr.wheelUse up to Frame SN 2116068 |
44701-405-771 |
US $201.28 |
||
|
12
|
12
44711-341-003 Tire325h194ps21f2 |
44711-341-003 |
US $111.42 |
||
|
13
|
13
44712-371-003
Tube325/350-19tr6
|
44712-371-003 |
— | ||
|
14
|
14
44713-MR1-671 Flap (100/90-19) |
44713-MR1-671 |
US $10.29 |
||
|
15
|
15
44800-323-000
Box,spdmt gear
|
44800-323-000 |
— | ||
|
16
|
16
45120-374-700
Brake,front disk
|
45120-374-700 |
— | ||
|
17
|
17
90122-300-020 Bolt,8x102 |
90122-300-020 |
US $13.52 |
||
|
18
|
18
90306-425-870
Nut,axle,12mm
|
90306-425-870 |
— | ||
|
19
|
19
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
20
|
20
91252-300-003 Dust,seal |
91252-300-003 |
from US $13.28 |
||
|
21
|
21
91302-300-000 O ring,58x2 |
91302-300-000 |
from US $9.78 |
||
|
22
|
22
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
23
|
23
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
