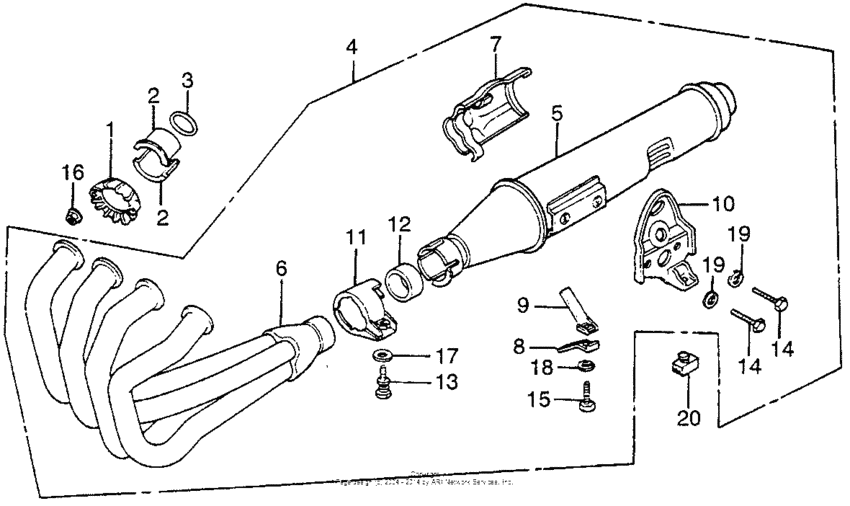

Muffler Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-333-010 Joint,exh-pipe |
18231-333-010 |
US $41.48 |
||
|
2
|
2
18233-107-000 Collar, ex. joint |
18233-107-000 |
from US $5.05 |
||
|
3
|
3
18291-390-306 Gasket, ex. pipe |
18291-390-306 |
from US $8.31 |
||
|
4
|
4
18300-390-000
Muffler,ex.
|
18300-390-000 |
— | ||
|
5
|
5
18310-390-003
Muffler comp.
|
18310-390-003 |
— | ||
|
6
|
6
18316-390-003
Pipe comp,exhaust
|
18316-390-003 |
— | ||
|
7
|
7
18325-390-000
Protector,ex.pipe
|
18325-390-000 |
— | ||
|
8
|
8
18326-390-000
Band, a protector
|
18326-390-000 |
— | ||
|
9
|
9
18327-390-000
Band, b protector
|
18327-390-000 |
— | ||
|
10
|
10
18350-390-000
Stay, muffler
|
18350-390-000 |
— | ||
|
11
|
11
18371-390-000
Band,muffler
|
18371-390-000 |
— | ||
|
12
|
12
18391-390-405
Gasket, muffler
|
18391-390-405 |
— | ||
|
13
|
13
90105-390-000
Bolt,muffler set
|
90105-390-000 |
— | ||
|
14
|
14
92101-08016-0A Bolt, hex., 8x16 |
92101-08016-0A |
from US $0.52 |
||
|
15
|
15
92025-06025-0A Bolt,hex.,6x25 |
92025-06025-0A |
from US $0.52 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
18
|
18
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
20
|
20
9501161000 Rubber a, stand stopper |
9501161000 |
from US $0.74 |
