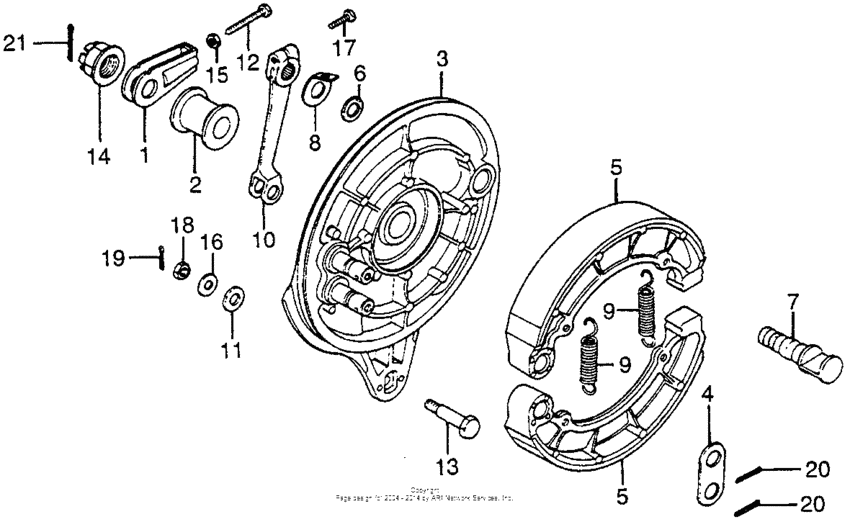

Rear brake panel Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-390-405
Pad, set brake
|
06455-390-405 |
— | ||
|
1
|
1
40543-390-000 Adjuster, chain |
40543-390-000 |
US $22.38 |
||
| replacement | |||||
|
1
|
1
95014-18000 Adjuster j,chain |
95014-18000 |
US $16.32 |
||
|
1
|
1
95014-18000 Adjuster j,chain |
95014-18000 |
US $16.32 |
||
|
2
|
2
42313-292-000
Coller panel side
|
42313-292-000 |
— | ||
|
3
|
3
43100-341-030
Panel comp.,brake
Use up to Frame SN 2115718 |
43100-341-030 |
— | ||
|
3
|
3
43100-393-781
Panel,rr.brake
Use from Frame SN 2115719 |
43100-393-781 |
— | ||
|
4
|
4
43102-319-000 Washer, anchor pin |
43102-319-000 |
from US $3.63 |
||
|
5
|
5
06430-390-405
Shoe kit, brake
|
06430-390-405 |
— | ||
|
6
|
6
43134-300-000 Dust seal, brake cam |
43134-300-000 |
from US $2.44 |
||
|
7
|
7
43141-341-020
Cam,rear brake
|
43141-341-020 |
— | ||
|
8
|
8
43145-341-010
Rod,rear brake
|
43145-341-010 |
— | ||
|
9
|
9
43151-346-000 Spring, rr. |
43151-346-000 |
from US $5.92 |
||
|
10
|
10
43410-MR5-000
Arm, rr. brake
|
43410-MR5-000 |
— | ||
|
11
|
11
43434-286-000 Rubber |
43434-286-000 |
from US $2.15 |
||
|
12
|
12
90119-283-000 Bolt, chain |
90119-283-000 |
from US $11.25 |
||
|
13
|
13
90127-393-000 Bolt, rr |
90127-393-000 |
from US $4.59 |
||
|
14
|
14
90305-393-000
Nut,axle 18mm
|
90305-393-000 |
— | ||
|
15
|
15
90307-283-000 Nut, chain |
90307-283-000 |
from US $3.18 |
||
|
16
|
16
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
17
|
17
92101-08025-0A Bolt, hex., 8x25 |
92101-08025-0A |
from US $0.59 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
19
|
19
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
19
|
19
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
20
|
20
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
21
|
21
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
