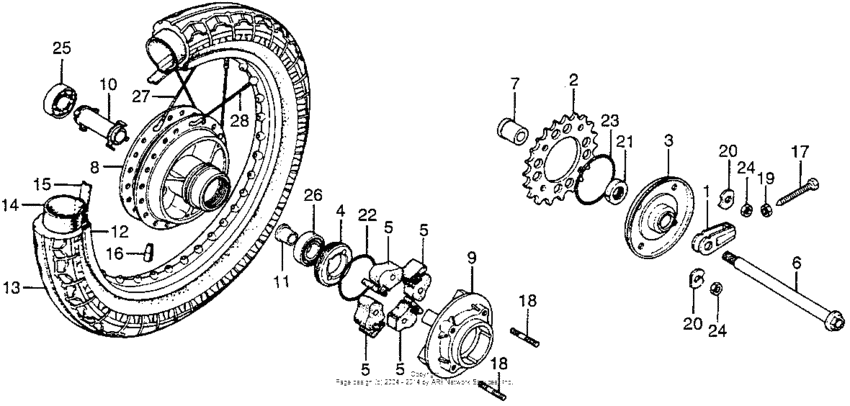

Rear wheel Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-390-000 Adjuster, chain |
40543-390-000 |
US $22.38 |
||
| replacement | |||||
|
1
|
1
95014-18000 Adjuster j,chain |
95014-18000 |
US $16.32 |
||
|
1
|
1
95014-18000 Adjuster j,chain |
95014-18000 |
US $16.32 |
||
|
2
|
2
41201-374-000
Sprocket,fainal
|
41201-374-000 |
— | ||
|
3
|
3
41211-323-000
Plate,sprkt side
|
41211-323-000 |
— | ||
|
4
|
4
41231-323-020
Retainer,bearing
|
41231-323-020 |
— | ||
|
5
|
5
41241-404-000
Damper,rear wheel
|
41241-404-000 |
— | ||
|
6
|
6
42301-300-020
Axle,rear wheel
|
42301-300-020 |
— | ||
|
7
|
7
42311-390-000
Collar,rr.wheel
|
42311-390-000 |
— | ||
|
8
|
8
42601-404-000
Hub.,rear wheel
|
42601-404-000 |
— | ||
|
9
|
9
42610-323-000
Flange,final
|
42610-323-000 |
— | ||
|
10
|
10
42620-404-000
Collar,axle dist.
|
42620-404-000 |
— | ||
|
11
|
11
42625-283-000
Collar
|
42625-283-000 |
— | ||
|
12
|
12
42701-404-771
Rim,rr.wheel
Use up to Frame SN 2116068 |
42701-404-771 |
— | ||
|
13
|
13
42711-375-671 Tire, rr. (3.75s-18) |
42711-375-671 |
US $60.30 |
||
|
14
|
14
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
14
|
14
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
14
|
14
44712-300-004 Tube (3.25/3.50-19) |
44712-300-004 |
from US $58.01 |
||
|
15
|
15
42713-268-003
Flap,x-18a
|
42713-268-003 |
— | ||
| replacement | |||||
|
15
|
15
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
16
|
16
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
16
|
16
44607-283-000 Balancer, wheel |
44607-283-000 |
from US $6.79 |
||
|
16
|
16
44608-283-000 Balancer, wheel |
44608-283-000 |
US $42.70 |
||
|
16
|
16
44609-283-000 Balancer, wheel |
44609-283-000 |
US $5.12 |
||
|
17
|
17
90119-283-000 Bolt, chain |
90119-283-000 |
from US $11.25 |
||
|
18
|
18
90125-323-000
Bolt,stud,10x48
|
90125-323-000 |
— | ||
|
19
|
19
90307-283-000 Nut, chain |
90307-283-000 |
from US $3.18 |
||
|
20
|
20
90524-323-000
Washer,10mm
|
90524-323-000 |
— | ||
|
21
|
21
90753-283-000 Oil seal, 34559 |
90753-283-000 |
from US $18.90 |
||
|
22
|
22
91261-323-000
D ring,79x2.6
|
91261-323-000 |
— | ||
|
23
|
23
91262-323-000
O ring,92x2
|
91262-323-000 |
— | ||
|
24
|
24
9403010000 Nut, hex., 10mm |
9403010000 |
from US $0.55 |
||
|
25
|
25
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
26
|
26
96140-630-501-0 B/brg rad n/com |
96140-630-501-0 |
from US $13.17 |
||
|
27
|
27
97313-691-291-0 Spoke bs, 8x144.5 |
97313-691-291-0 |
US $2.37 |
||
|
28
|
28
97C07-691-281-0 Spoke bs, 8x144 |
97C07-691-281-0 |
US $2.37 |
||
