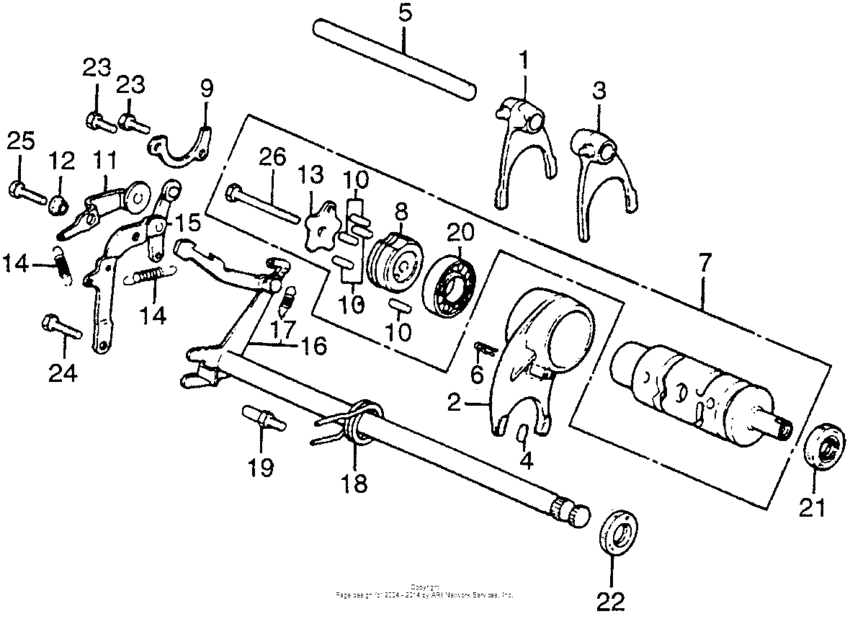

Shift drums + shift fork Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-374-000
Fork,r.gear shift
|
24211-374-000 |
— | ||
|
2
|
2
24212-390-000
Fork,c.gear shift
|
24212-390-000 |
— | ||
|
3
|
3
24213-374-000 Fork,l.gear shift |
24213-374-000 |
US $77.49 |
||
|
4
|
4
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
5
|
5
24261-374-000
Shaft,shift fork
|
24261-374-000 |
— | ||
|
6
|
6
24263-286-000
Clip, shift fork
|
24263-286-000 |
— | ||
|
7
|
7
24300-374-000 Drum,gear shift |
24300-374-000 |
US $166.55 |
||
|
8
|
8
24302-374-000
Center,gear shift
|
24302-374-000 |
— | ||
|
9
|
9
24305-374-000 Plate,bearing setUse up to Engine SN 1144010 |
24305-374-000 |
from US $3.40 |
||
|
9
|
9
24305-374-010
Plate,bearing set
Use from Engine SN 1144011 |
24305-374-010 |
— | ||
|
10
|
10
24421-230-000 Pin, gearshift drum |
24421-230-000 |
from US $9.18 |
||
|
11
|
11
24430-390-000
Stopper., drum
Use up to Engine SN 1151442 |
24430-390-000 |
— | ||
|
11
|
11
24430-390-010
Stopper,shiftdrum
Use from Engine SN 1151443 |
24430-390-010 |
— | ||
|
12
|
12
24433-323-010
Collar,shift drum
|
24433-323-010 |
— | ||
|
13
|
13
24434-286-020
Plate,stopper cam
|
24434-286-020 |
— | ||
|
14
|
14
24435-323-020
Spring,shift drum
|
24435-323-020 |
— | ||
|
15
|
15
24440-390-000
Stopper,neutral
|
24440-390-000 |
— | ||
|
16
|
16
24610-374-000
Spindle,gearshift
|
24610-374-000 |
— | ||
|
17
|
17
24641-292-000
Spring,shift arm
|
24641-292-000 |
— | ||
|
18
|
18
24651-286-000
Spring,return
|
24651-286-000 |
— | ||
|
19
|
19
24652-028-000 PinUse from Engine SN 1151507 |
24652-028-000 |
from US $4.74 |
||
|
19
|
19
90015-286-000
Pin,return spring
Use up to Engine SN 1151506 |
90015-286-000 |
— | ||
|
20
|
20
91008-374-003 Bearing (16005) |
91008-374-003 |
from US $10.21 |
||
|
21
|
21
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
22
|
22
91202-KFL-841 Oil seal 13.8x24x5 |
91202-KFL-841 |
from US $4.51 |
||
|
23
|
23
92101-06014-0A Bolt, hex., 6x14 |
92101-06014-0A |
from US $0.47 |
||
|
24
|
24
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
25
|
25
92020-06020 Bolt,hex 6x20 |
92020-06020 |
US $0.47 |
||
|
26
|
26
92201-06032-0A Bolt, hex. (6x32) |
92201-06032-0A |
US $0.52 |
