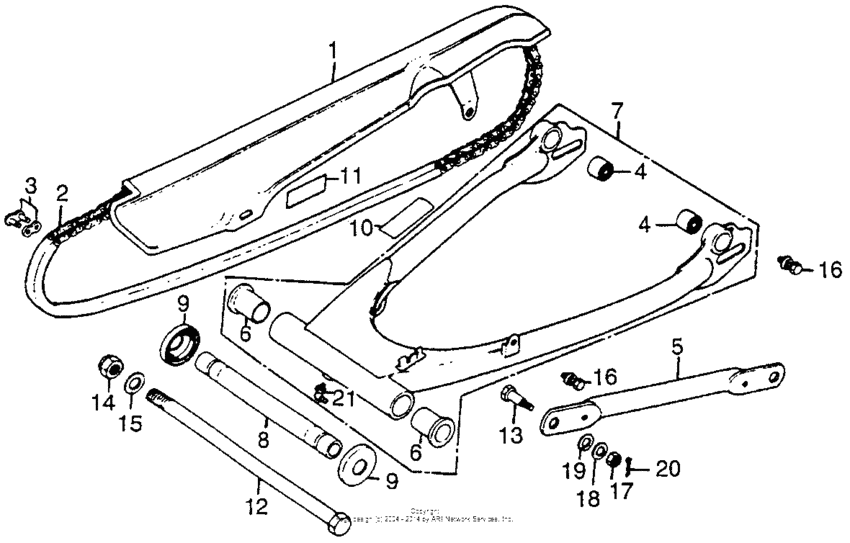

Swingarm + chain Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-390-000
Case drive chain
|
40510-390-000 |
— | ||
|
2
|
2
40530-426-641
Chain, drive
|
40530-426-641 |
— | ||
|
3
|
3
40531-392-305
Joint,drive chain
(Optional). |
40531-392-305 |
— | ||
|
3
|
3
40531-404-000
Joint,drive chain
(Optional). |
40531-404-000 |
— | ||
|
4
|
4
40548-268-000 Bush, rubber |
40548-268-000 |
from US $7.10 |
||
|
5
|
5
43431-404-000 Arm,rr.brake stop |
43431-404-000 |
US $22.40 |
||
|
6
|
6
52108-457-300 Bush,rr.forkpivot |
52108-457-300 |
from US $33.56 |
||
|
7
|
7
52110-390-000ZA
Fork,rr.*nh-1*
|
52110-390-000ZA |
— | ||
|
8
|
8
52141-390-010
Collar,rr. fork
|
52141-390-010 |
— | ||
|
9
|
9
52144-362-000 Cap,dust seal |
52144-362-000 |
US $16.59 |
||
|
10
|
10
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.64 |
||
|
11
|
11
87505-390-780
Mark, tire caution
|
87505-390-780 |
— | ||
|
12
|
12
90121-426-000
Bolt,rr.forkpivot
|
90121-426-000 |
— | ||
|
13
|
13
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
14
|
14
90354-268-000 Nut, self lock |
90354-268-000 |
from US $8.44 |
||
|
15
|
15
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
16
|
16
93483-060-140-0 Bolt-washer,6x14 |
93483-060-140-0 |
US $0.59 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
19
|
19
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
20
|
20
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
20
|
20
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
20
|
20
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
20
|
20
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
20
|
20
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
21
|
21
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
