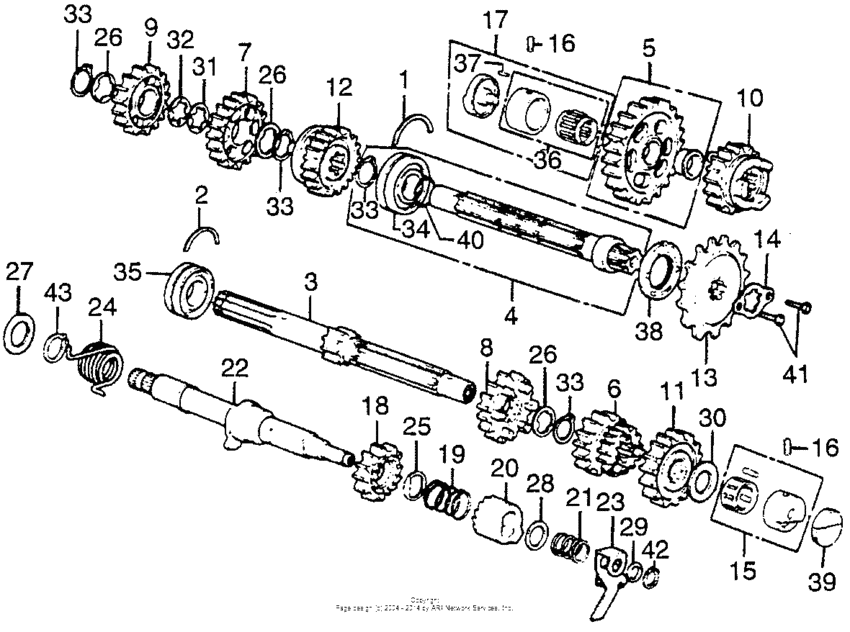

Transmission + kick spindle Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13491-283-000
Ring
|
13491-283-000 |
— | ||
|
2
|
2
95015-25200 Set ring, 520 |
95015-25200 |
US $1.48 |
||
|
3
|
3
23210-374-000 Shaft,trns.main |
23210-374-000 |
US $252.55 |
||
|
4
|
4
23220-374-000
Shaft,trns.
|
23220-374-000 |
— | ||
|
5
|
5
23420-374-000
Gear,ct/shaft.low
|
23420-374-000 |
— | ||
|
6
|
6
23431-374-000
Gear,m/shaet
|
23431-374-000 |
— | ||
|
7
|
7
23441-286-020 Gear c2 |
23441-286-020 |
US $118.54 |
||
|
8
|
8
23450-390-000
Gear., m4
|
23450-390-000 |
— | ||
|
9
|
9
234A1-390-315
Shaft,gear set
|
234A1-390-315 |
— | ||
|
9
|
9
23461-286-030
Gear c3
|
23461-286-030 |
— | ||
|
10
|
10
234A1-390-315
Shaft,gear set
|
234A1-390-315 |
— | ||
|
11
|
11
23480-390-000
Gear.,mainsft top
|
23480-390-000 |
— | ||
|
12
|
12
23491-374-000
Gear,ct/shaft.top
|
23491-374-000 |
— | ||
|
13
|
13
23801-300-010
Sprocket,drive
|
23801-300-010 |
— | ||
|
14
|
14
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
15
|
15
23931-323-004
Needle brg
|
23931-323-004 |
— | ||
|
16
|
16
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
17
|
17
25100-374-003
Bearing,oil pump
|
25100-374-003 |
— | ||
|
18
|
18
28211-323-000
Pinion,kick start
|
28211-323-000 |
— | ||
|
19
|
19
28215-216-000
Spring, starter
|
28215-216-000 |
— | ||
|
20
|
20
28221-310-020
Ratchat,starter
|
28221-310-020 |
— | ||
|
21
|
21
28223-216-000
Spring, starter
|
28223-216-000 |
— | ||
|
22
|
22
28251-323-000
Spindle,starter
|
28251-323-000 |
— | ||
|
23
|
23
28258-310-010
Plate,guide
|
28258-310-010 |
— | ||
|
24
|
24
28261-323-000
Spring,starter
|
28261-323-000 |
— | ||
|
25
|
25
90451-216-000
Washer, thrust
|
90451-216-000 |
— | ||
|
26
|
26
90451-286-000
Washer thrust 25
|
90451-286-000 |
— | ||
|
27
|
27
90451-357-000
Washer,18mm
|
90451-357-000 |
— | ||
|
28
|
28
90457-HB3-000 Washer, thrust, 15x1 |
90457-HB3-000 |
from US $2.66 |
||
|
29
|
29
90452-ZG0-000 Washer, 12mm |
90452-ZG0-000 |
US $2.24 |
||
|
30
|
30
90458-292-000 Washer, thrust, 20mm |
90458-292-000 |
from US $3.55 |
||
|
31
|
31
90461-286-000 Washer b (25mm) |
90461-286-000 |
US $4.74 |
||
|
32
|
32
90462-323-000 Washer, lock (25mm) |
90462-323-000 |
from US $3.26 |
||
|
33
|
33
90602-259-010 Circlip (25mm) |
90602-259-010 |
from US $3.85 |
||
|
34
|
34
91002-283-000
B/brg n/rad n/com
|
91002-283-000 |
— | ||
|
35
|
35
91002-286-008
B/brg n/rad n/com
|
91002-286-008 |
— | ||
|
36
|
36
91022-374-003
Needle brg
|
91022-374-003 |
— | ||
|
37
|
37
91103-374-003
Pin,oil pumpknock
|
91103-374-003 |
— | ||
|
38
|
38
91205-283-015 Oil seal,33x57x7 |
91205-283-015 |
from US $13.18 |
||
|
39
|
39
91207-374-000
Oil seal,34x9
|
91207-374-000 |
— | ||
|
40
|
40
91306-703-000
O ring,24.5mm
|
91306-703-000 |
— | ||
|
41
|
41
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
41
|
41
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
41
|
41
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
42
|
42
94510-12000 CirclipEXTERNAL, 12MM |
94510-12000 |
from US $0.44 |
||
|
43
|
43
94510-18000 CirclipEXTERNAL, 18MM |
94510-18000 |
from US $0.45 |
||
