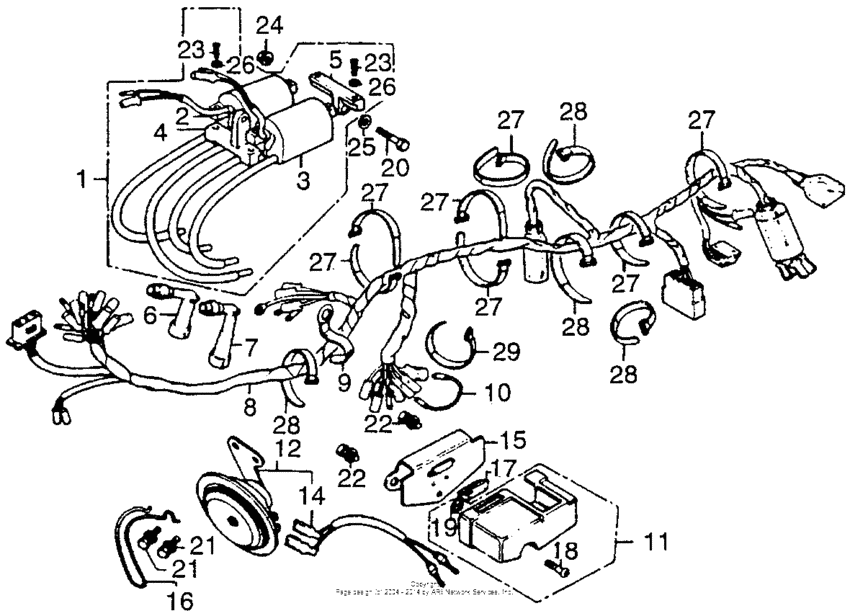

Wire harness + horn Diagram Honda CB550
- Year
- 1977
- Model code
- CB550F A
- Sales region
- USA
- Frame
- CB550F2100001 - CB550F2114871
- Engine Capacity
- 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-404-000
Coil assy.,ign
|
30500-404-000 |
— | ||
|
2
|
2
30501-404-000
Coil,r.ignition
|
30501-404-000 |
— | ||
|
3
|
3
30502-404-000
Coil,l.ignition
|
30502-404-000 |
— | ||
|
4
|
4
30511-300-000
Bracket ignition
|
30511-300-000 |
— | ||
|
5
|
5
30512-323-000
Bracket b,ign
|
30512-323-000 |
— | ||
|
6
|
6
30700-GAR-000 Cap assy. |
30700-GAR-000 |
from US $16.86 |
||
|
7
|
7
30700-MC8-000 Cap,noise supr. |
30700-MC8-000 |
from US $28.15 |
||
|
8
|
8
32100-390-010
Harness wire
|
32100-390-010 |
— | ||
|
9
|
9
32171-323-000
Clip,wire harness
|
32171-323-000 |
— | ||
|
10
|
10
32200-390-670
Sub-wire harness
|
32200-390-670 |
— | ||
|
11
|
11
32400-390-000
Box, harness
|
32400-390-000 |
— | ||
|
12
|
12
38100-392-621
Horn assy
|
38100-392-621 |
— | ||
|
14
|
14
38105-369-000
Sub cord,horn
|
38105-369-000 |
— | ||
|
15
|
15
50107-390-000
Plate harness box
|
50107-390-000 |
— | ||
|
16
|
16
50462-323-010 Clamp,cable |
50462-323-010 |
US $12.14 |
||
|
17
|
17
83621-333-000 Grommet,side |
83621-333-000 |
from US $7.25 |
||
|
18
|
18
90088-612-000
Pan,5x12 screw
|
90088-612-000 |
— | ||
|
19
|
19
90601-816-000
Clip,5mm
|
90601-816-000 |
— | ||
|
20
|
20
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
21
|
21
93401-060-160-0 Bolt-washer6X16 |
93401-060-160-0 |
from US $0.52 |
||
|
22
|
22
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
23
|
23
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
27
|
27
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
28
|
28
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
29
|
29
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
