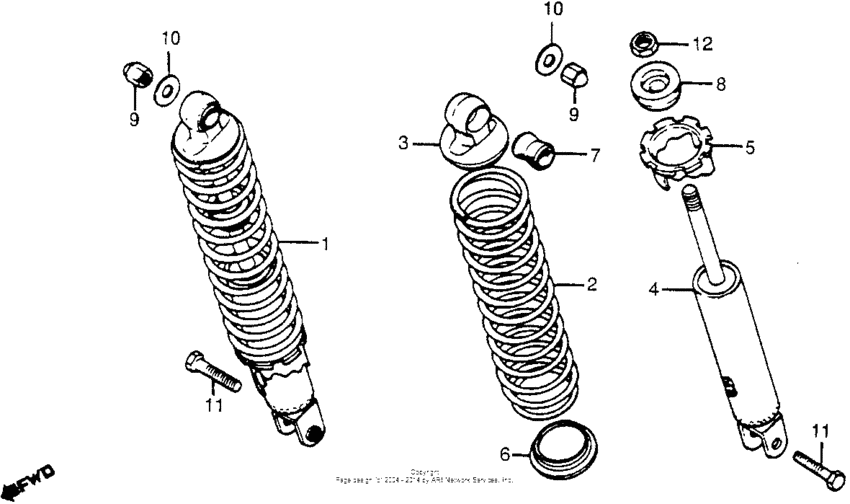

Rear shock absorber Diagram Honda CB650
- Year
- 1979
- Model code
- CB650 A
- Sales region
- USA
- Frame
- RC032002472 -
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-460-405
Shock absorber, rr.
|
52400-460-405 |
— | ||
|
2
|
2
52401-426-013
Spring, rr. shock
|
52401-426-013 |
— | ||
|
3
|
3
52403-425-003 Joint comp.,upper |
52403-425-003 |
US $21.51 |
||
|
4
|
4
52410-426-013
Damper comp.,rr.
|
52410-426-013 |
— | ||
|
5
|
5
52422-404-003 Adjuster, spring |
52422-404-003 |
from US $14.69 |
||
|
6
|
6
52458-329-000 Seat,under spring |
52458-329-000 |
US $5.40 |
||
|
7
|
7
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
8
|
8
52517-404-003 Rubber, stopper |
52517-404-003 |
US $4.74 |
||
|
9
|
9
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
10
|
10
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
11
|
11
93101-100-320-A
Bolt, hex. (10x32)
|
93101-100-320-A |
— | ||
|
12
|
12
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
