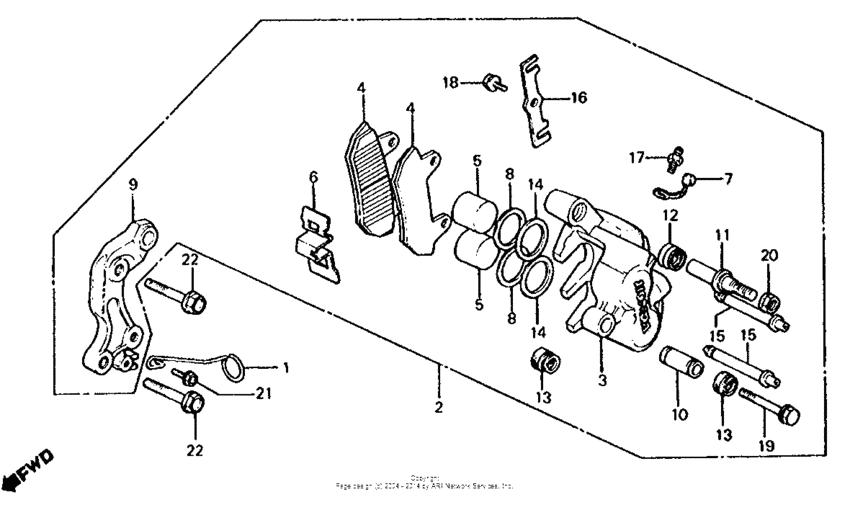

Cb650 front brake caliper 2 82 Diagram Honda CB650
- Year
- 1982
- Model code
- CB650 A
- Sales region
- USA
- Frame
- JH2RC050*CM300003 -
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44832-MA3-000
Clamp,spdmt.cable
Use from Frame SN CM301878 |
44832-MA3-000 |
— | ||
|
2
|
2
45100-MA4-772 Caliper,l.fr.Use from Frame SN CM301878 |
45100-MA4-772 |
US $546.28 |
||
|
3
|
3
45101-MA5-771
Caliper, l.
Use from Frame SN CM301878 |
45101-MA5-771 |
— | ||
|
4
|
4
45105-MC9-305
Pad, set
Use from Frame SN CM301878 |
45105-MC9-305 |
— | ||
|
5
|
5
45107-MA5-771
Piston
Use from Frame SN CM301878 |
45107-MA5-771 |
— | ||
|
6
|
6
45108-MA5-771
Spring, pad
Use from Frame SN CM301878 |
45108-MA5-771 |
— | ||
|
7
|
7
45108-425-003
Cap, bleeder valve
Use from Frame SN CM301878 |
45108-425-003 |
— | ||
|
8
|
8
45109-166-006 Dust sealUse from Frame SN CM301878 |
45109-166-006 |
from US $4 |
||
|
9
|
9
45110-MA4-771
Bracket,l.
Use from Frame SN CM301878 |
45110-MA4-771 |
— | ||
|
10
|
10
45111-MA5-771
Sleeve
Use from Frame SN CM301878 |
45111-MA5-771 |
— | ||
|
11
|
11
45131-MA5-771
Pin, bolt
Use from Frame SN CM301878 |
45131-MA5-771 |
— | ||
|
12
|
12
45133-MA5-771
Boot, pin
Use from Frame SN CM301878 |
45133-MA5-771 |
— | ||
|
13
|
13
45134-MA5-771 Boot, boltUse from Frame SN CM301878 |
45134-MA5-771 |
from US $5.03 |
||
|
14
|
14
45209-183-003 SealPISTON Use from Frame SN CM301878 |
45209-183-003 |
from US $6.96 |
||
|
15
|
15
45215-MA5-771
Pin, pad retaining
Use from Frame SN CM301878 |
45215-MA5-771 |
— | ||
|
16
|
16
45217-MA5-771
Plate
Use from Frame SN CM301878 |
45217-MA5-771 |
— | ||
|
17
|
17
45224-413-003
Valve, bleeder
Use from Frame SN CM301878 |
45224-413-003 |
— | ||
|
18
|
18
90101-MA5-771
Bolt, flange (6x10)
Use from Frame SN CM301878 |
90101-MA5-771 |
— | ||
|
19
|
19
90180-MA5-771
Bolt, flange (8x48)
Use from Frame SN CM301878 |
90180-MA5-771 |
— | ||
|
20
|
20
90303-428-900 Nut, flange (10mm)Use from Frame SN CM301878 |
90303-428-900 |
from US $1.89 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 Use from Frame SN CM301878 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95801-100-320-0 Bolt,flange,10x32Use from Frame SN CM301878 |
95801-100-320-0 |
from US $0.81 |
