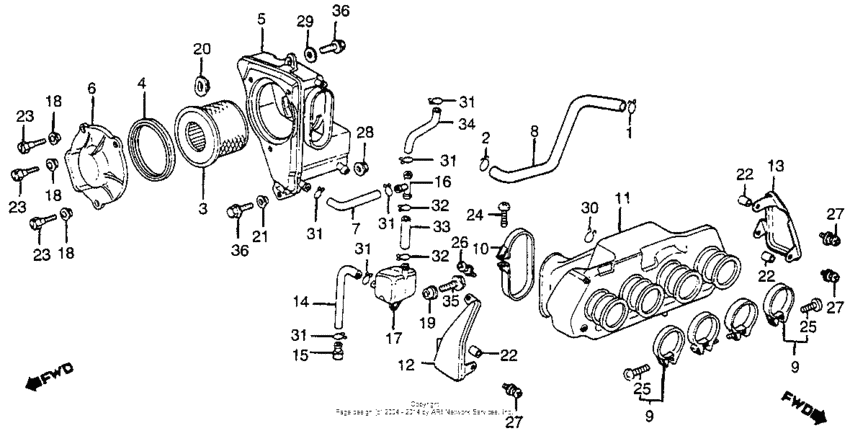

Air cleaner Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
2
|
2
15771-551-000 ClipOIL DRAIN TUBE |
15771-551-000 |
from US $3.77 |
||
|
3
|
3
17211-460-000 Element,air/c |
17211-460-000 |
US $31.40 |
||
|
4
|
4
17217-426-300
Packing,cleaner
|
17217-426-300 |
— | ||
|
5
|
5
17218-460-840
Case,air cleaner
|
17218-460-840 |
— | ||
|
6
|
6
17220-460-000
Cover,a/c case
|
17220-460-000 |
— | ||
|
7
|
7
17221-460-000
Tube,cleaner dra.
|
17221-460-000 |
— | ||
|
8
|
8
17231-460-730
Tube,carb.air.ven
|
17231-460-730 |
— | ||
|
9
|
9
9501860250 Band (60) |
9501860250 |
from US $3.26 |
||
|
10
|
10
17256-460-000
Band,a/c seal
|
17256-460-000 |
— | ||
|
11
|
11
17310-460-840
Chamber,air/c
|
17310-460-840 |
— | ||
|
12
|
12
17312-460-840
Cover,r.chamber
|
17312-460-840 |
— | ||
|
13
|
13
17313-460-840
Cover,l.chamber
|
17313-460-840 |
— | ||
|
14
|
14
17335-460-670
Tube, drain
|
17335-460-670 |
— | ||
|
15
|
15
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.48 |
||
|
16
|
16
17373-399-760 JointBREATHER THREE WAY |
17373-399-760 |
from US $11.87 |
||
|
17
|
17
17551-460-670
Tank,storage
|
17551-460-670 |
— | ||
|
18
|
18
61304-379-690 Collar |
61304-379-690 |
from US $3.55 |
||
|
19
|
19
61107-KB5-000 Collar, fr |
61107-KB5-000 |
from US $2.55 |
||
|
20
|
20
90513-405-000 Washer, 6x9 |
90513-405-000 |
from US $2.44 |
||
|
21
|
21
90521-460-840
Collar b
|
90521-460-840 |
— | ||
|
22
|
22
91501-460-840
Collar,a/c chambe
|
91501-460-840 |
— | ||
|
23
|
23
92401-05016-0A
Bolt, slotted (5x16)
|
92401-05016-0A |
— | ||
|
24
|
24
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
25
|
25
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
26
|
26
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
|
27
|
27
93893-0502007 Screw-washer (5x20) |
93893-0502007 |
from US $0.52 |
||
|
28
|
28
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
29
|
29
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
30
|
30
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
31
|
31
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
32
|
32
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
33
|
33
95003-230-0860M
Bulk hose, vinyl
|
95003-230-0860M |
— | ||
|
34
|
34
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $11.25 |
||
|
35
|
35
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
36
|
36
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.58 |
