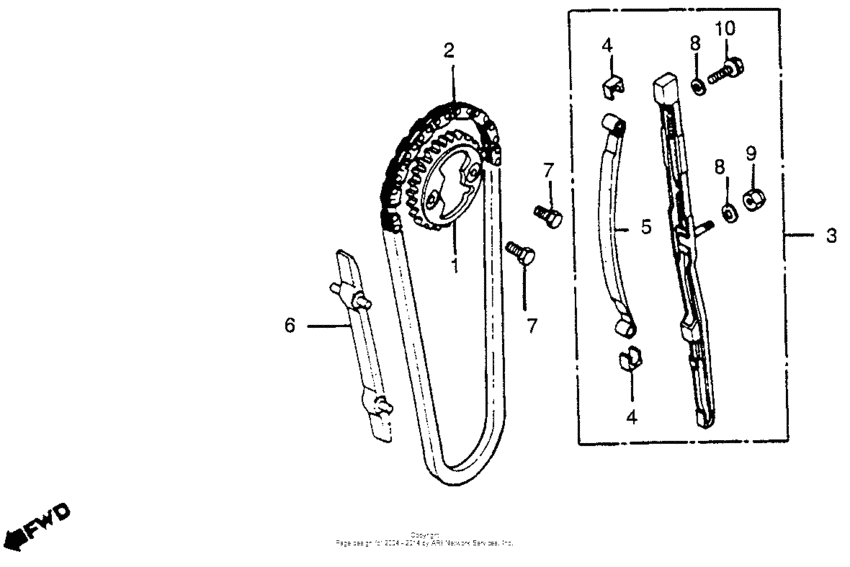

Cam chain + tensioner Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-426-010
Sprocket,cam
|
14321-426-010 |
— | ||
|
2
|
2
14401-426-024
Chain,cam
|
14401-426-024 |
— | ||
|
3
|
3
14500-426-010
Tensioner,cam cha
|
14500-426-010 |
— | ||
|
4
|
4
14501-323-000 Damper,tensioner |
14501-323-000 |
from US $6.79 |
||
|
5
|
5
14520-426-010
Slipper,tensioner
|
14520-426-010 |
— | ||
|
6
|
6
14611-426-010
Guide,cam chain
|
14611-426-010 |
— | ||
|
7
|
7
90081-426-000
Bolt (7x12)
|
90081-426-000 |
— | ||
|
8
|
8
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.04 |
||
|
9
|
9
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
10
|
10
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
