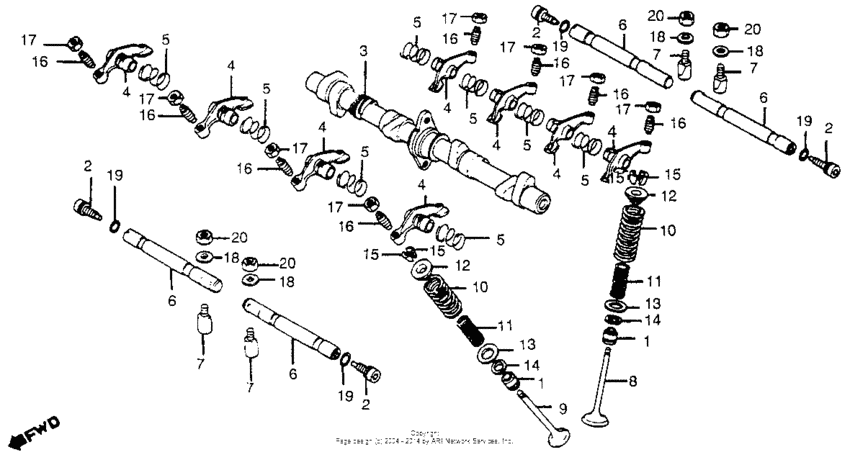

Camshaft + valve Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-333-005 Seal, valve stem |
12209-333-005 |
from US $11.69 |
||
|
2
|
2
12332-426-000
Bolt, o-ring guide
|
12332-426-000 |
— | ||
|
3
|
3
14101-426-000
Camshaft
|
14101-426-000 |
— | ||
|
4
|
4
14431-460-770
Arm,valve rocker
|
14431-460-770 |
— | ||
|
5
|
5
14435-426-000
Spring,rocker arm
|
14435-426-000 |
— | ||
|
6
|
6
14451-426-000
Shaft,rocker arm
|
14451-426-000 |
— | ||
|
7
|
7
14456-390-000
Shaft,rocket arm
|
14456-390-000 |
— | ||
|
8
|
8
14711-426-003
Valve,in.nittan
|
14711-426-003 |
— | ||
|
9
|
9
14721-426-003
Valve,ex.(nittan)
|
14721-426-003 |
— | ||
|
10
|
10
14751-383-003 Spring, valve |
14751-383-003 |
from US $10.80 |
||
|
11
|
11
14761-383-003 Spring, valve |
14761-383-003 |
from US $5.77 |
||
| replacement | |||||
|
11
|
11
14761-383-005 Spring, valve |
14761-383-005 |
from US $5.77 |
||
|
12
|
12
14771-107-020 Retainer, vlv spr |
14771-107-020 |
from US $5.03 |
||
|
13
|
13
14775-107-000 Seat, valve spring |
14775-107-000 |
from US $3.63 |
||
|
14
|
14
14776-107-010 Seat, valve spring |
14776-107-010 |
from US $2.37 |
||
|
15
|
15
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
16
|
16
90012-426-000 Screw, tappet adj |
90012-426-000 |
from US $4.07 |
||
|
17
|
17
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
||
|
18
|
18
90474-704-000 Washer, 6x17 |
90474-704-000 |
US $2.30 |
||
|
19
|
19
91305-028-158 O-ring (9x1.6) |
91305-028-158 |
US $3.55 |
||
| replacement | |||||
|
19
|
19
91305-028-900 O-ring (9x1.6) |
91305-028-900 |
from US $3.85 |
||
|
19
|
19
91305-028-900 O-ring (9x1.6) |
91305-028-900 |
from US $3.85 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
