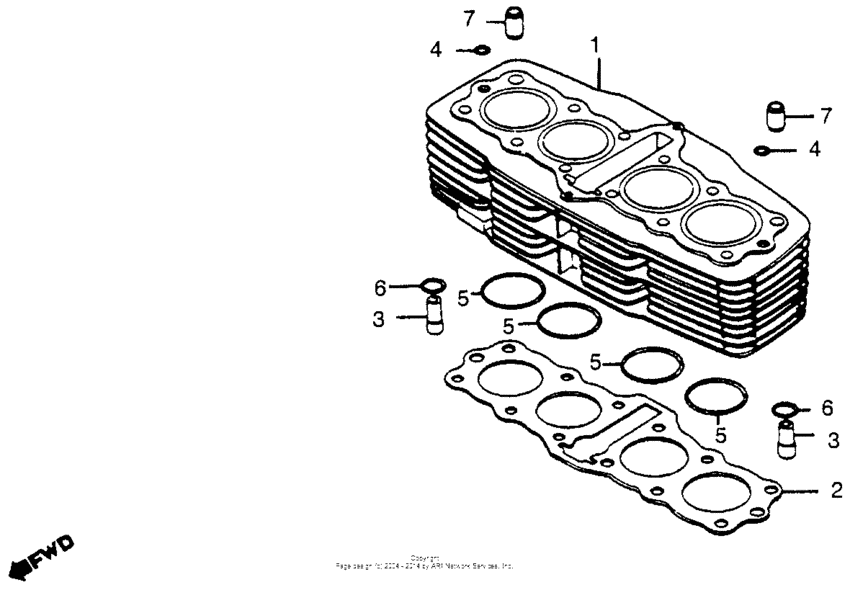

Cylinder Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-460-780
Cylinder
|
12100-460-780 |
— | ||
|
2
|
2
12191-426-306 Gasket, cylinder |
12191-426-306 |
from US $18.90 |
||
|
3
|
3
12238-323-000
Valve, oil control
|
12238-323-000 |
— | ||
|
4
|
4
91301-426-010 O-ring,4.9x2.5 |
91301-426-010 |
from US $3.77 |
||
|
5
|
5
91304-286-000 O ring,61.8x2.0 |
91304-286-000 |
from US $10.42 |
||
|
6
|
6
91310-426-000 O-ring (11x2.5) |
91310-426-000 |
from US $4.23 |
||
|
7
|
7
94301-12180 Pin aDOWEL, 12X18 |
94301-12180 |
from US $1.04 |
