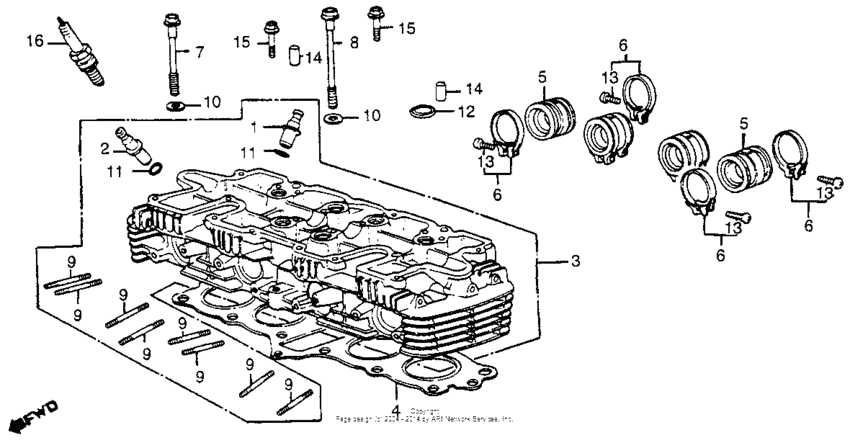

Cylinder head Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12021-426-000 Superceded |
12021-426-000 |
US $9.42 |
||
| replacement | |||||
|
1
|
1
12204-KW1-405 Guide, valve |
12204-KW1-405 |
from US $11.99 |
||
|
1
|
1
12204-KW1-405 Guide, valve |
12204-KW1-405 |
from US $11.99 |
||
|
2
|
2
12204-KW1-405 Guide, valve |
12204-KW1-405 |
from US $11.99 |
||
|
3
|
3
12200-460-780
Cylinder head
|
12200-460-780 |
— | ||
|
4
|
4
12251-426-306
Gasket, cyl hd
|
12251-426-306 |
— | ||
|
5
|
5
16211-460-770 Carb,insulator |
16211-460-770 |
from US $26.06 |
||
|
6
|
6
16219-422-000 Band, insulator |
16219-422-000 |
from US $8.73 |
||
|
7
|
7
90023-MW3-600 Bolt, flange (8x120) |
90023-MW3-600 |
from US $5.77 |
||
|
8
|
8
90036-426-004
Bolt,flang,8x145
|
90036-426-004 |
— | ||
|
9
|
9
90044-426-300
Bolt,stud,6x51
|
90044-426-300 |
— | ||
|
10
|
10
90483-028-000 Washer, 8mm |
90483-028-000 |
from US $1.92 |
||
|
11
|
11
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
12
|
12
91318-300-013 Rubber,sealing |
91318-300-013 |
from US $5.33 |
||
|
13
|
13
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
14
|
14
9430210160 Pin b, dowel, 10x16 |
9430210160 |
from US $1.04 |
||
|
15
|
15
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
15
|
15
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
15
|
15
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
16
|
16
9806957719 Spark plug (dr7es) |
9806957719 |
from US $3.57 |
||
|
16
|
16
98069-57726 Plug, spark (x22esr-u) (denso) |
98069-57726 |
from US $3.81 |
||
|
16
|
16
9806958719 Spark plug (dr8es) |
9806958719 |
from US $4.08 |
||
|
16
|
16
9806959726 S/plg (x27esr-u) |
9806959726 |
from US $3.71 |
||
