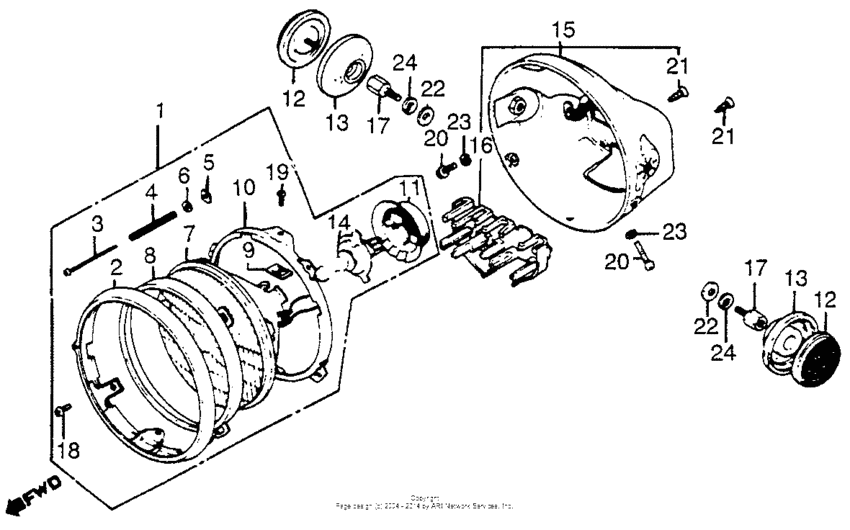

Headlight Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-422-671
Headlight assy
|
33100-422-671 |
— | ||
|
2
|
2
33101-460-671
Rim, headlight
|
33101-460-671 |
— | ||
|
3
|
3
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
3
|
3
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
4
|
4
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
5
|
5
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
6
|
6
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
7
|
7
33120-431-671
Unit, headlight.
|
33120-431-671 |
— | ||
|
8
|
8
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
9
|
9
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
10
|
10
33153-422-003
Ring,mounting
|
33153-422-003 |
— | ||
|
11
|
11
33180-422-003 Cover, rubber |
33180-422-003 |
US $19.16 |
||
|
12
|
12
33742-HB9-641 Reflector, fr. |
33742-HB9-641 |
from US $11.20 |
||
|
13
|
13
33743-425-600
Base,fr.reflector
|
33743-425-600 |
— | ||
|
14
|
14
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
14
|
14
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
15
|
15
61301-460-000
Case,headlight
|
61301-460-000 |
— | ||
|
16
|
16
61305-460-300
Holder,coupler
|
61305-460-300 |
— | ||
|
17
|
17
90120-425-000
Bolt,headlight
|
90120-425-000 |
— | ||
|
18
|
18
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
19
|
19
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
20
|
20
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
21
|
21
93902-34310 Screw,tapping4x12 |
93902-34310 |
US $0.37 |
||
|
22
|
22
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
23
|
23
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
24
|
24
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
