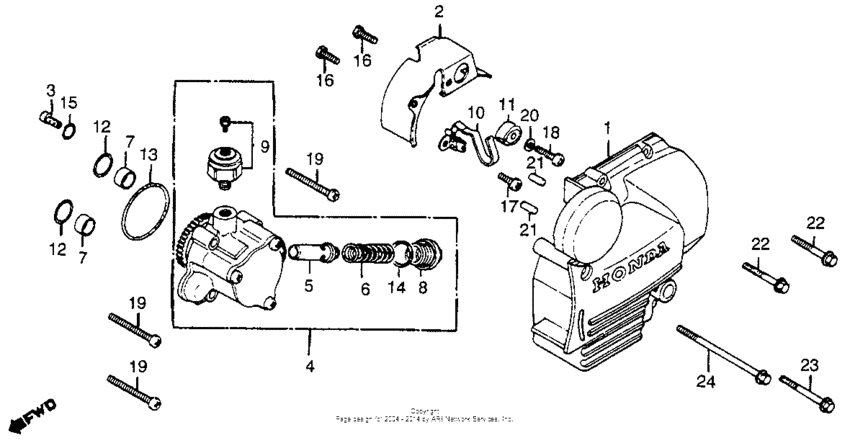

Left crankcase cover + oil pump Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-460-780
Cover, l. crankcase
|
11341-460-780 |
— | ||
|
2
|
2
11353-460-000
Protector, case
|
11353-460-000 |
— | ||
|
3
|
3
12245-426-000
Valve
|
12245-426-000 |
— | ||
|
4
|
4
15100-426-013
Pump assy.,oil
|
15100-426-013 |
— | ||
|
5
|
5
15140-300-010 Valve,relief |
15140-300-010 |
US $12.78 |
||
|
6
|
6
15145-300-000
Spring,relief
|
15145-300-000 |
— | ||
|
7
|
7
15155-323-000
Collar,o ring
|
15155-323-000 |
— | ||
|
8
|
8
15331-323-003
Cap,oil pass
|
15331-323-003 |
— | ||
|
9
|
9
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $20.67 |
||
|
10
|
10
35610-426-003
Switch,neutral
|
35610-426-003 |
— | ||
|
11
|
11
35753-323-000
Rotor,neutral sw
|
35753-323-000 |
— | ||
|
12
|
12
91303-MG7-003 O-ring (13.8x2.5) |
91303-MG7-003 |
from US $2.77 |
||
|
13
|
13
91305-426-003 O-ring (46x2) |
91305-426-003 |
from US $5.91 |
||
|
14
|
14
91306-425-003
O-ring,19.4x2.8
|
91306-425-003 |
— | ||
|
15
|
15
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
16
|
16
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
16
|
16
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
18
|
18
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
19
|
19
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94302-06100 Pin bDOWEL, 6X10 |
94302-06100 |
from US $0.89 |
||
|
22
|
22
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
23
|
23
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
24
|
24
96001-0608007 Bolt, flange (6x80) |
96001-0608007 |
from US $0.89 |
||
|
24
|
24
96001-0608000 Bolt, flange (6x80) |
96001-0608000 |
from US $0.89 |
||
