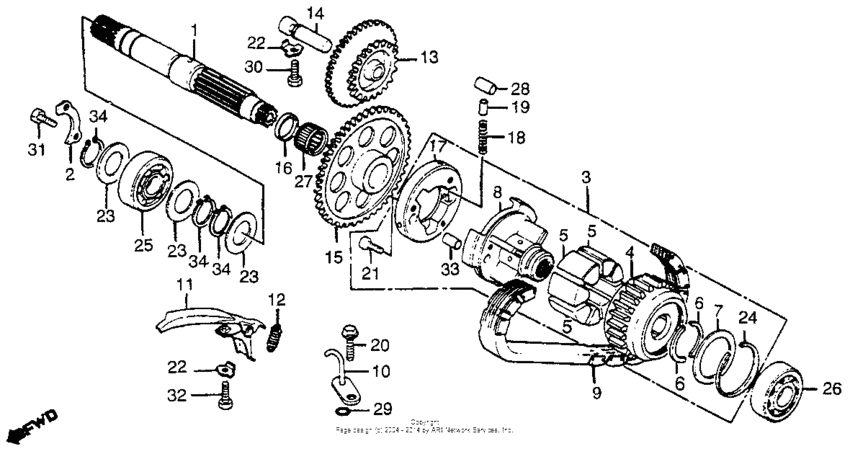

Primary shaft Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23101-426-000
Shaft,primary
|
23101-426-000 |
— | ||
|
2
|
2
23102-323-000
Plate,bearing set
|
23102-323-000 |
— | ||
|
3
|
3
23110-426-000
Sprocket,primary
|
23110-426-000 |
— | ||
|
4
|
4
23111-426-000
Sprkt,prim,driven
|
23111-426-000 |
— | ||
|
5
|
5
23114-426-300
Rubber,damper
|
23114-426-300 |
— | ||
|
6
|
6
23115-426-000
Cotter,30mm
|
23115-426-000 |
— | ||
|
7
|
7
23116-426-000
Collar,40mm
|
23116-426-000 |
— | ||
|
8
|
8
23121-426-000
Hub,drimary drive
|
23121-426-000 |
— | ||
|
9
|
9
23131-426-003 Chain,prim.drive |
23131-426-003 |
US $103.36 |
||
|
10
|
10
23134-426-000
Nozzle,prim.chain
|
23134-426-000 |
— | ||
|
11
|
11
23150-426-010
Tensioner,primary
|
23150-426-010 |
— | ||
|
12
|
12
23160-426-000
Spg,prim.tension
|
23160-426-000 |
— | ||
|
13
|
13
28101-426-000
Gear,start.(23t)
|
28101-426-000 |
— | ||
|
14
|
14
28106-323-000
Shaft,starter
|
28106-323-000 |
— | ||
|
15
|
15
28111-426-000
Gear,start.(57t)
|
28111-426-000 |
— | ||
|
16
|
16
28112-323-000
Spacer,25mm
|
28112-323-000 |
— | ||
|
17
|
17
28120-426-000
Clutch outer
|
28120-426-000 |
— | ||
|
18
|
18
28125-426-000 Spring |
28125-426-000 |
from US $2.22 |
||
|
19
|
19
28126-323-000 Cap |
28126-323-000 |
from US $4.29 |
||
|
20
|
20
90061-161-000 Bolt, flange, 6x16 |
90061-161-000 |
US $4.68 |
||
|
21
|
21
90085-413-781 Bolt, socket (6mm) |
90085-413-781 |
from US $4 |
||
|
22
|
22
90439-PH8-000 WasherLOCK, 6MM |
90439-PH8-000 |
US $6.44 |
||
|
23
|
23
90453-426-000
Washer (22.5mm)
|
90453-426-000 |
— | ||
|
24
|
24
90605-426-000
Cir clip,intl,52
|
90605-426-000 |
— | ||
|
25
|
25
91002-KY4-901 Bearing (63/22) |
91002-KY4-901 |
from US $22.14 |
||
|
26
|
26
91002-PL0-018 Bearing (62/22) |
91002-PL0-018 |
from US $10.21 |
||
|
26
|
26
91005-657-004 BearingBALL, 62/22 (KOYO) |
91005-657-004 |
US $32.42 |
||
| replacement | |||||
|
26
|
26
91002-PL0-018 Bearing (62/22) |
91002-PL0-018 |
from US $10.21 |
||
|
26
|
26
91005-657-008 BearingBALL, 62/22(NTN) |
91005-657-008 |
US $32.42 |
||
| replacement | |||||
|
26
|
26
91002-PL0-018 Bearing (62/22) |
91002-PL0-018 |
from US $10.21 |
||
|
27
|
27
91007-426-004
Needle brg
|
91007-426-004 |
— | ||
|
28
|
28
91101-259-000
Roller 4x13
|
91101-259-000 |
— | ||
|
29
|
29
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
30
|
30
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
31
|
31
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
32
|
32
92020-06020 Bolt,hex 6x20 |
92020-06020 |
US $0.47 |
||
|
33
|
33
94303-08140 Dowel pin8X14 |
94303-08140 |
from US $0.89 |
||
|
34
|
34
94510-22000 CirclipEXTERNAL, 22MM |
94510-22000 |
from US $0.59 |
||
