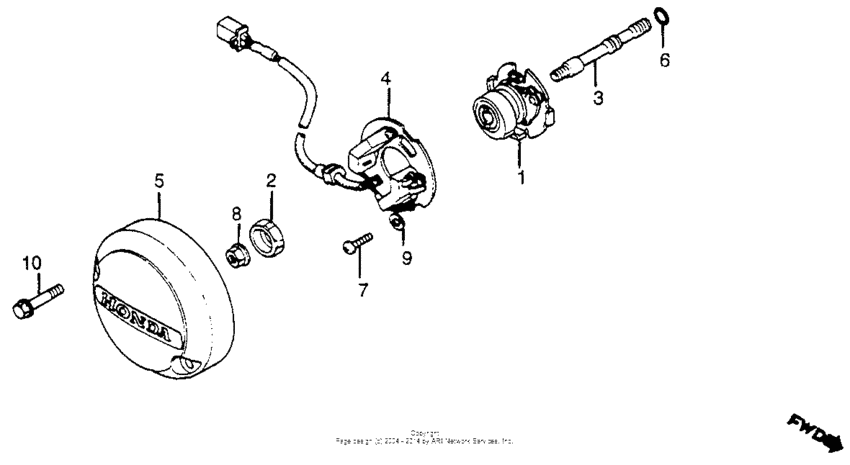

Pulse generator Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30220-460-771
Advancer,spark
|
30220-460-771 |
— | ||
|
2
|
2
30228-425-010
Boss,timing
|
30228-425-010 |
— | ||
|
3
|
3
30231-426-000
Shaft,advancer
|
30231-426-000 |
— | ||
|
4
|
4
30300-426-154
Pulser assy,gen.
|
30300-426-154 |
— | ||
|
5
|
5
30371-460-780
Cover,point
|
30371-460-780 |
— | ||
|
6
|
6
91301-300-000
O-ring
|
91301-300-000 |
— | ||
|
7
|
7
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
8
|
8
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
10
|
10
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
