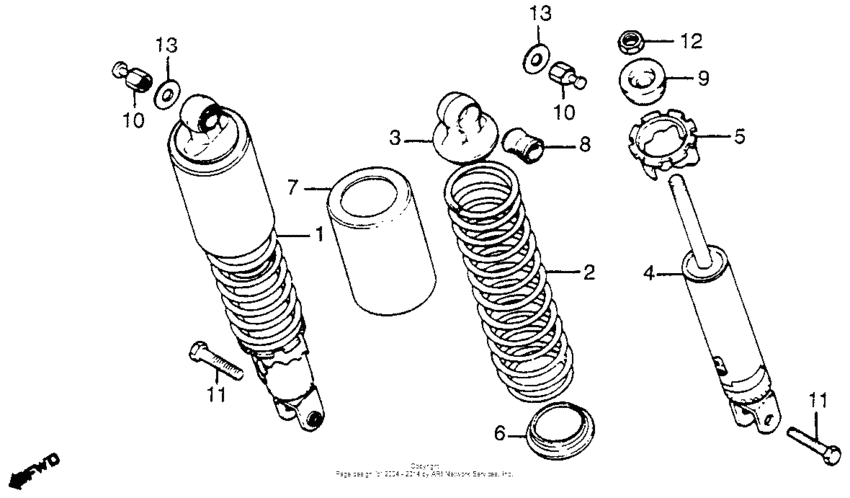

Rear shock absorber Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-460-841
Cushion assy.,rr.
|
52400-460-841 |
— | ||
|
2
|
2
52401-460-841
Spring,rr.cushion
|
52401-460-841 |
— | ||
|
3
|
3
52403-425-003 Joint comp.,upper |
52403-425-003 |
US $21.51 |
||
|
4
|
4
52410-460-841
Damper comp.,rr.
|
52410-460-841 |
— | ||
|
5
|
5
52422-404-003 Adjuster, spring |
52422-404-003 |
from US $14.69 |
||
|
6
|
6
52458-329-000 Seat,under spring |
52458-329-000 |
US $5.40 |
||
|
7
|
7
52460-MA5-671
Case,cushion up
|
52460-MA5-671 |
— | ||
|
8
|
8
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
9
|
9
52517-404-003 Rubber, stopper |
52517-404-003 |
US $4.74 |
||
|
10
|
10
90309-460-840
Nut,rr.cushion up
|
90309-460-840 |
— | ||
|
11
|
11
93101-100-320-A
Bolt, hex. (10x32)
|
93101-100-320-A |
— | ||
|
12
|
12
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
13
|
13
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
