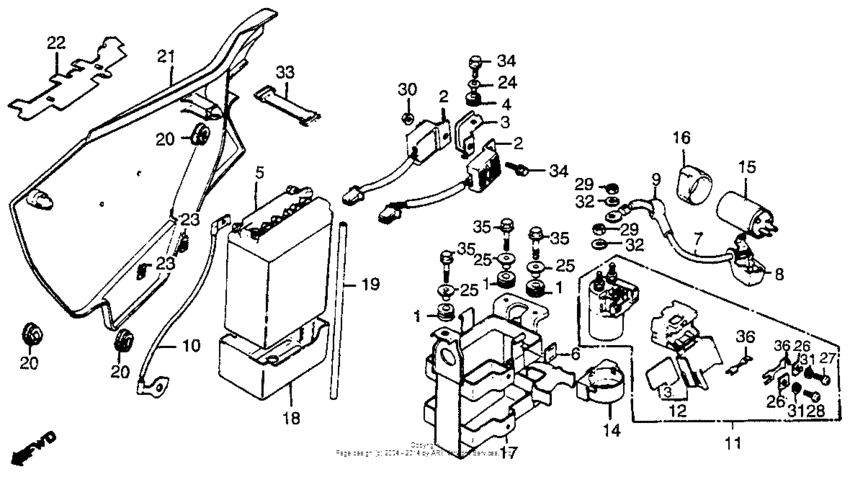

Right side cover + battery Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
30400-MA4-601
Unit assy.,spark
|
30400-MA4-601 |
— | ||
|
3
|
3
30402-460-000
Stay, spark unit
|
30402-460-000 |
— | ||
|
4
|
4
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
5
|
5
31500-MN2-672
Battery yb12a-a
|
31500-MN2-672 |
— | ||
| replacement | |||||
|
5
|
5
0SSAB-FB1-2AA Battery yb12a-a |
0SSAB-FB1-2AA |
US $100.91 |
||
|
5
|
5
31500-460-672AH Battery (12v12) |
31500-460-672AH |
US $70.18 |
||
|
6
|
6
31504-460-000
Mark, battery level
|
31504-460-000 |
— | ||
|
7
|
7
32401-460-000
Cable,battery
|
32401-460-000 |
— | ||
|
8
|
8
32411-460-000
Cover,terminal
|
32411-460-000 |
— | ||
|
9
|
9
32415-425-000 Cover a, magnetic switch |
32415-425-000 |
from US $3.33 |
||
|
10
|
10
32601-460-000
Cable,bat earth
|
32601-460-000 |
— | ||
|
11
|
11
35850-MB0-007 Sw assy,start.mag |
35850-MB0-007 |
from US $111.52 |
||
|
12
|
12
35852-425-017
Cover,fuse
|
35852-425-017 |
— | ||
|
13
|
13
35853-425-300
Label,fuse cover
|
35853-425-300 |
— | ||
|
14
|
14
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
15
|
15
38300-MG2-008 Relay,assy winker |
38300-MG2-008 |
US $53.72 |
||
|
16
|
16
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
17
|
17
50325-460-730
Box, battery
|
50325-460-730 |
— | ||
|
18
|
18
50326-413-781
Cushion,battery
|
50326-413-781 |
— | ||
|
19
|
19
50328-460-730
Tube, battery
|
50328-460-730 |
— | ||
|
20
|
20
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
21
|
21
836A1-460-840ZA
Coverr*pb-115c-u*
|
836A1-460-840ZA |
— | ||
|
21
|
21
836A1-460-840ZB
Coverr.*b-100m-u*
|
836A1-460-840ZB |
— | ||
|
22
|
22
87124-460-840
Emb,r,side cover
|
87124-460-840 |
— | ||
|
23
|
23
90315-504-000 NutSPIRE, 3MM |
90315-504-000 |
from US $1.48 |
||
|
24
|
24
90501-124-000 Washer, fr |
90501-124-000 |
from US $3.42 |
||
|
25
|
25
90501-425-000 Collar6.2X12 |
90501-425-000 |
from US $3.70 |
||
|
26
|
26
90555-425-007
Washer (4mm)
|
90555-425-007 |
— | ||
|
27
|
27
93500-040-060-H ScrewPAN, 4X6 |
93500-040-060-H |
from US $0.18 |
||
|
28
|
28
93500-040-100-H ScrewPAN, 4X10 |
93500-040-100-H |
from US $0.37 |
||
|
29
|
29
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
30
|
30
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
31
|
31
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
32
|
32
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
33
|
33
9501212001 Band b1, battery |
9501212001 |
from US $3.48 |
||
|
34
|
34
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
35
|
35
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
36
|
36
9820053000 Fuse f (30a) |
9820053000 |
from US $0.74 |
||
