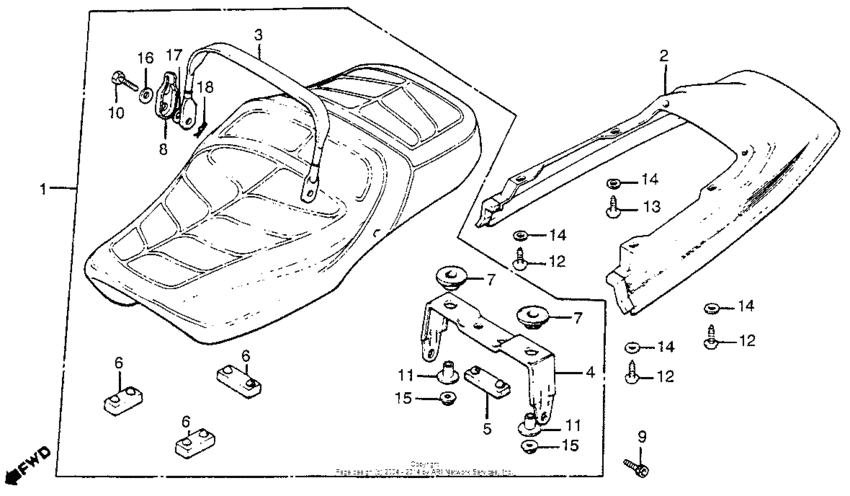

Seat Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77100-460-840
Seat comp.,double
|
77100-460-840 |
— | ||
|
2
|
2
772A0-460-840ZA
Cowl.*pb-115c-u*
|
772A0-460-840ZA |
— | ||
|
2
|
2
772A0-460-840ZB
Cowl,*b-100m-u*
|
772A0-460-840ZB |
— | ||
|
3
|
3
77201-460-840
Belt,seat
|
77201-460-840 |
— | ||
|
4
|
4
77203-460-840
Plate,seat set
|
77203-460-840 |
— | ||
|
5
|
5
77204-312-000 Rubber, seat setting |
77204-312-000 |
from US $4.74 |
||
|
6
|
6
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
7
|
7
77206-460-000
Rubber,seat set
|
77206-460-000 |
— | ||
|
8
|
8
77207-460-840
Cover,seat belt
|
77207-460-840 |
— | ||
|
9
|
9
90115-463-000 Bolt,socket |
90115-463-000 |
from US $7.70 |
||
|
10
|
10
90146-460-840
Screw,band sett
|
90146-460-840 |
— | ||
|
11
|
11
90501-438-000 Collar (6x14.8) |
90501-438-000 |
from US $4.07 |
||
|
12
|
12
93901-25320 ScrewTAPPING, 5X16 |
93901-25320 |
from US $0.37 |
||
|
13
|
13
9390125420 Screw, tap (5x20) |
9390125420 |
from US $0.37 |
||
|
14
|
14
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
15
|
15
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
16
|
16
94102-08700 WasherPLAIN, 8MM |
94102-08700 |
from US $0.37 |
||
|
17
|
17
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
18
|
18
94251-06000 PinLOCK, 6MM |
94251-06000 |
from US $0.44 |
