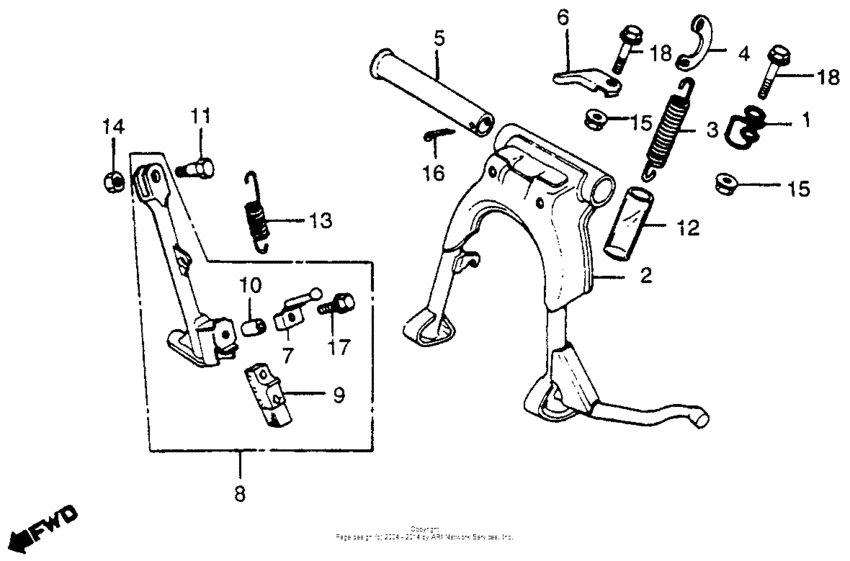

Stand Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17338-460-000
Guide,drain tube
|
17338-460-000 |
— | ||
|
2
|
2
50500-460-840
Stand comp.,main
|
50500-460-840 |
— | ||
|
3
|
3
50510-460-840 Spring,main stand |
50510-460-840 |
US $6.87 |
||
|
4
|
4
50523-460-840
Pl,main stand spr
|
50523-460-840 |
— | ||
|
5
|
5
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
6
|
6
50527-460-000
Guide,drain tube
|
50527-460-000 |
— | ||
|
7
|
7
50534-460-000
Bar comp.,tread
|
50534-460-000 |
— | ||
|
8
|
8
50540-460-000
Side stand bar
|
50540-460-000 |
— | ||
|
9
|
9
50548-356-700 Rubber, stand |
50548-356-700 |
from US $7.15 |
||
|
10
|
10
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
11
|
11
90108-KL8-710
Screw
|
90108-KL8-710 |
— | ||
|
12
|
12
90125-410-000
Cover,stand spg.
|
90125-410-000 |
— | ||
|
13
|
13
50541-MM4-000 Spring, side stand |
50541-MM4-000 |
from US $5.62 |
||
| replacement | |||||
|
13
|
13
50542-MZ2-000 Spring, side stand |
50542-MZ2-000 |
from US $7.40 |
||
|
14
|
14
94031-10000 Nut,hex 10mm |
94031-10000 |
from US $0.52 |
||
|
15
|
15
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
16
|
16
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.44 |
||
|
17
|
17
95701-0602807 Bolt, flange (6x28) |
95701-0602807 |
from US $0.59 |
||
|
18
|
18
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
||
