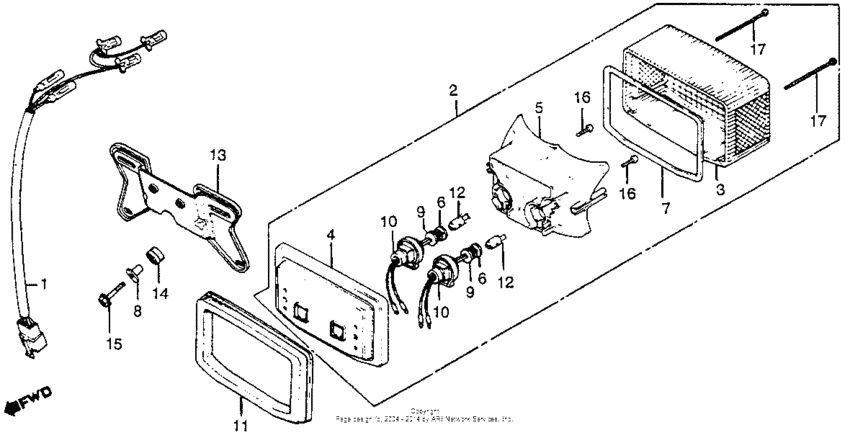

Taillight Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32102-MC9-670
Harn,tail.sub wir
|
32102-MC9-670 |
— | ||
|
2
|
2
33701-MC9-830
Unit,tail light
|
33701-MC9-830 |
— | ||
|
3
|
3
33702-425-771
Lens,taillight
|
33702-425-771 |
— | ||
|
4
|
4
33703-425-772 Base,comp,tail |
33703-425-772 |
US $37.18 |
||
|
5
|
5
33704-460-791
Reflector
|
33704-460-791 |
— | ||
|
6
|
6
33705-147-671
Cord,tall light
|
33705-147-671 |
— | ||
| replacement | |||||
|
6
|
6
33705-166-770 Cord,taillight |
33705-166-770 |
US $10.21 |
||
|
7
|
7
33708-425-771 Packing,lens |
33708-425-771 |
US $9.44 |
||
|
8
|
8
33709-460-840 Collar,taillight |
33709-460-840 |
US $3.93 |
||
|
9
|
9
33710-425-772
Socket comp.
|
33710-425-772 |
— | ||
|
10
|
10
33711-425-771
Rubber,cushion
|
33711-425-771 |
— | ||
|
11
|
11
33718-460-840 Pkg,taillight |
33718-460-840 |
US $13.52 |
||
|
12
|
12
34906-425-771 Bulb (12v27/8w) |
34906-425-771 |
from US $4.14 |
||
|
13
|
13
84701-460-840 Bracket,number pl |
84701-460-840 |
US $47.06 |
||
|
14
|
14
84905-460-840 Rubber,cushion |
84905-460-840 |
US $2.79 |
||
|
15
|
15
92101-06022-0A BoltHEX., 6X22 |
92101-06022-0A |
from US $0.55 |
||
|
16
|
16
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
17
|
17
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
