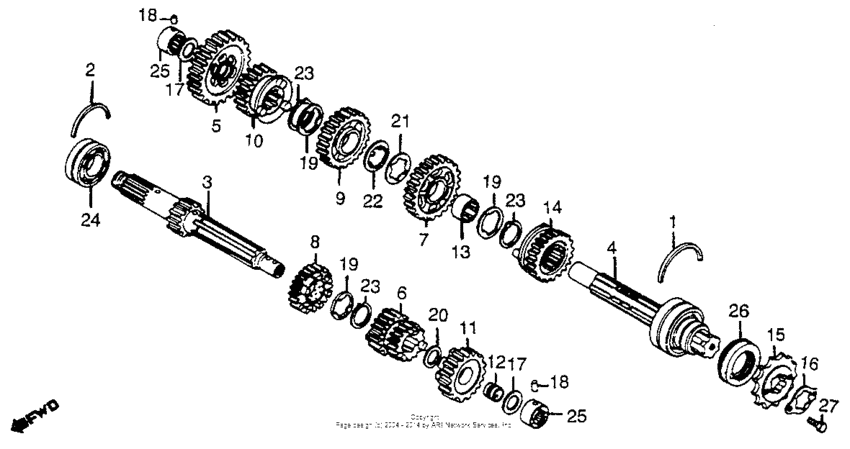

Transmission Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13491-283-000
Ring
|
13491-283-000 |
— | ||
|
2
|
2
95015-25200 Set ring, 520 |
95015-25200 |
US $1.48 |
||
|
3
|
3
23210-460-680
Mainshaft (13t)
|
23210-460-680 |
— | ||
|
4
|
4
23220-426-000
Ct/shaft,trns.
|
23220-426-000 |
— | ||
|
5
|
5
23421-460-680
Gear (35t)
|
23421-460-680 |
— | ||
|
6
|
6
23431-460-680
Gear,second/third
|
23431-460-680 |
— | ||
|
7
|
7
23441-460-680
Gear,second 32t
|
23441-460-680 |
— | ||
|
8
|
8
23451-460-680
Gear,main.fourth
|
23451-460-680 |
— | ||
|
9
|
9
23461-460-680
Gear (28t)
|
23461-460-680 |
— | ||
|
10
|
10
23400-460-680
Gear,counter,4th
|
23400-460-680 |
— | ||
|
11
|
11
23481-426-000
Gear,m/shaft 26t
|
23481-426-000 |
— | ||
|
12
|
12
23482-426-000
Bush,20mm
|
23482-426-000 |
— | ||
|
13
|
13
23485-369-000 Bush, spline (28mm) |
23485-369-000 |
from US $26.79 |
||
|
14
|
14
23491-426-010
Gear, c. top(23t)
|
23491-426-010 |
— | ||
|
15
|
15
23801-460-680
Sprocket,drive
|
23801-460-680 |
— | ||
|
16
|
16
23811-292-000 Plate,fixing |
23811-292-000 |
from US $3.62 |
||
|
17
|
17
23901-567-319 Plate a,thrust |
23901-567-319 |
US $5.04 |
||
|
18
|
18
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
19
|
19
90451-286-000
Washer thrust 25
|
90451-286-000 |
— | ||
|
20
|
20
90454-107-000 Washer, thrust, 20mm |
90454-107-000 |
from US $2.15 |
||
|
21
|
21
90461-286-000 Washer b (25mm) |
90461-286-000 |
US $4.74 |
||
|
22
|
22
90462-323-000 Washer, lock (25mm) |
90462-323-000 |
from US $3.26 |
||
|
23
|
23
90602-259-010 Circlip (25mm) |
90602-259-010 |
from US $3.85 |
||
|
24
|
24
91002-286-008
B/brg n/rad n/com
|
91002-286-008 |
— | ||
|
25
|
25
91023-MM4-003
Bearing (20x34x16.8)
|
91023-MM4-003 |
— | ||
| replacement | |||||
|
25
|
25
91023-MKP-D01 Brg (20X34X16.8) |
91023-MKP-D01 |
from US $16.05 |
||
|
26
|
26
91205-426-013
Oil seal,36x57x13
|
91205-426-013 |
— | ||
|
27
|
27
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
