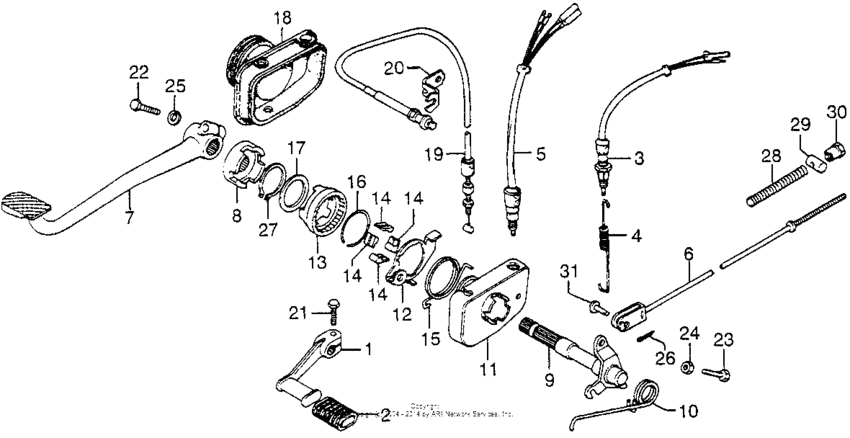

Brake pedal + change pedal Diagram Honda CB750
- Year
- 1976
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7000001 - CB750A7007331
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-393-000
Pedal, gearshift
|
24700-393-000 |
— | ||
|
2
|
2
24781-371-000 Rubber |
24781-371-000 |
from US $3.47 |
||
|
3
|
3
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
4
|
4
35357-393-000
Spring,stop sw.
|
35357-393-000 |
— | ||
|
5
|
5
35360-393-772
Sw assy,parking
|
35360-393-772 |
— | ||
|
6
|
6
43451-393-000
Rod,rear brake
|
43451-393-000 |
— | ||
|
7
|
7
46500-393-000
Pedal, rr. brake
|
46500-393-000 |
— | ||
|
8
|
8
46501-393-003
Joint, rr. brake
|
46501-393-003 |
— | ||
|
9
|
9
46510-393-000
Spindle, rr. brake
|
46510-393-000 |
— | ||
|
10
|
10
46514-393-000
Spring, brake pedal
|
46514-393-000 |
— | ||
|
11
|
11
46601-393-023
Base, ratchet
|
46601-393-023 |
— | ||
|
12
|
12
46602-393-013
Lever, ratchet
|
46602-393-013 |
— | ||
|
13
|
13
46604-393-003
Case, ratchet
|
46604-393-003 |
— | ||
|
14
|
14
46605-393-013
Pole, ratchet
|
46605-393-013 |
— | ||
|
15
|
15
46606-393-010
Spring
|
46606-393-010 |
— | ||
|
16
|
16
46607-393-010
Spring, pole set
|
46607-393-010 |
— | ||
|
17
|
17
46608-393-003
Washer (38x29.5x1)
|
46608-393-003 |
— | ||
|
18
|
18
46611-393-000
Cover,ratchet
|
46611-393-000 |
— | ||
|
19
|
19
46620-393-004
Cable,p/brk
|
46620-393-004 |
— | ||
|
20
|
20
46625-393-000
Bracket
|
46625-393-000 |
— | ||
|
21
|
21
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
22
|
22
92101-08028-0A Bolt, hex., 8x28 |
92101-08028-0A |
from US $0.59 |
||
|
23
|
23
92132-08032-0A Bolt, hex., 8x32 |
92132-08032-0A |
US $0.59 |
||
|
24
|
24
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
25
|
25
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
26
|
26
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
27
|
27
94511-29000
Circlip (29mm)
|
94511-29000 |
— | ||
|
28
|
28
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
29
|
29
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
30
|
30
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
31
|
31
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
