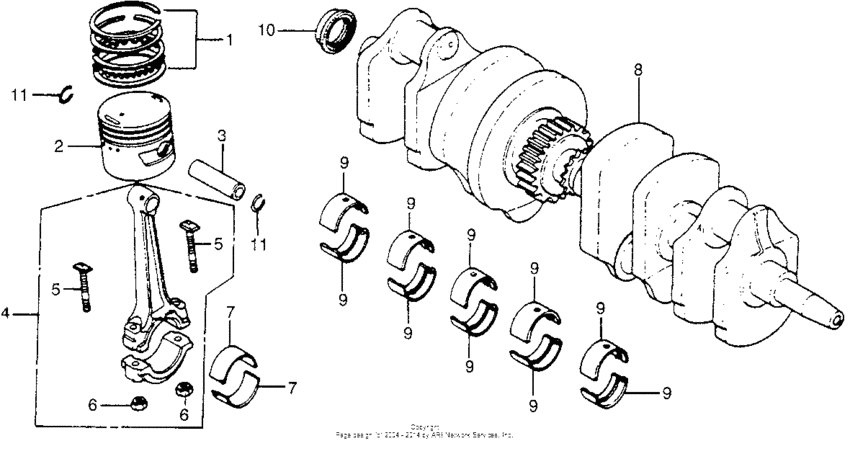

Crankshaft + piston Diagram Honda CB750
- Year
- 1976
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7000001 - CB750A7007331
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-392-004
Ring set (std)
|
13011-392-004 |
— | ||
|
1
|
1
13021-392-000
Ring set (os) (0.25)
(Optional). |
13021-392-000 |
— | ||
|
1
|
1
13031-392-000
Ring set (os) (0.50)
(Optional). |
13031-392-000 |
— | ||
|
1
|
1
13041-392-000
Ring set (os) (0.75)
(Optional). |
13041-392-000 |
— | ||
|
1
|
1
13051-392-000
Ring set (1.00)
(Optional). |
13051-392-000 |
— | ||
|
2
|
2
13101-393-000
Piston (std)
|
13101-393-000 |
— | ||
|
2
|
2
13102-393-000 Piston (os) (0.25)(Optional). |
13102-393-000 |
US $102.48 |
||
|
2
|
2
13103-393-000
Piston (os) (0.50)
(Optional). |
13103-393-000 |
— | ||
|
2
|
2
13104-393-000
Piston (0.75)
(Optional). |
13104-393-000 |
— | ||
|
2
|
2
13105-393-000
Piston (1.00)
(Optional). |
13105-393-000 |
— | ||
|
3
|
3
13111-300-000 Pin, piston |
13111-300-000 |
from US $15.83 |
||
|
4
|
4
13204-300-000
Rod d,connecting
|
13204-300-000 |
— | ||
|
4
|
4
13206-300-000 Rod f,connecting |
13206-300-000 |
US $332.30 |
||
|
4
|
4
13208-300-000 Rod h,connecting |
13208-300-000 |
US $332.30 |
||
|
4
|
4
13210-300-000
Rod h,connecting
|
13210-300-000 |
— | ||
| replacement | |||||
|
4
|
4
13208-300-000 Rod h,connecting |
13208-300-000 |
US $332.30 |
||
|
5
|
5
13213-333-003 Bolt,conn.rod |
13213-333-003 |
US $16.43 |
||
|
6
|
6
13214-300-000 Nut,conrod |
13214-300-000 |
US $7.99 |
||
|
7
|
7
13215-300-013 Bearing a,conrod |
13215-300-013 |
from US $13.79 |
||
| replacement | |||||
|
7
|
7
13215-413-015 BEARING B, CONNECTING ROD (BLACK) (TAIHO) |
13215-413-015 |
from US $11.25 |
||
|
7
|
7
13216-300-013 Bearing,b,conrod |
13216-300-013 |
US $30.30 |
||
| replacement | |||||
|
7
|
7
13216-413-015 BEARING C, CONNECTING ROD (BROWN) (TAIHO) |
13216-413-015 |
from US $12.43 |
||
|
7
|
7
13216-413-015 BEARING C, CONNECTING ROD (BROWN) (TAIHO) |
13216-413-015 |
from US $12.43 |
||
|
7
|
7
13217-300-013 Bearing c,conrod |
13217-300-013 |
from US $16.19 |
||
| replacement | |||||
|
7
|
7
13217-413-015 BEARING D, CONNECTING ROD (GREEN) (TAIHO) |
13217-413-015 |
from US $13.02 |
||
|
7
|
7
13217-413-015 BEARING D, CONNECTING ROD (GREEN) (TAIHO) |
13217-413-015 |
from US $13.02 |
||
|
7
|
7
13218-300-013 Bearing d,conrod |
13218-300-013 |
from US $14.47 |
||
|
7
|
7
13218-413-015 BEARING E, CONNECTING ROD (YELLOW) (TAIHO) |
13218-413-015 |
from US $11.25 |
||
|
8
|
8
13310-393-000
Crankshaft
|
13310-393-000 |
— | ||
|
9
|
9
13315-422-003
Bearing a, crank
|
13315-422-003 |
— | ||
| replacement | |||||
|
9
|
9
13315-425-003 BEARING A, CRANKSHAFT (BLACK) |
13315-425-003 |
from US $16.32 |
||
|
9
|
9
13315-425-003 BEARING A, CRANKSHAFT (BLACK) |
13315-425-003 |
from US $16.32 |
||
|
9
|
9
13316-300-013 Bearing b crank |
13316-300-013 |
US $23.10 |
||
| replacement | |||||
|
9
|
9
13316-425-003 BEARING B, CRANKSHAFT (BROWN) |
13316-425-003 |
from US $17.95 |
||
|
9
|
9
13316-425-003 BEARING B, CRANKSHAFT (BROWN) |
13316-425-003 |
from US $17.95 |
||
|
9
|
9
13317-425-003 BEARING C, CRANKSHAFT (GREEN) |
13317-425-003 |
from US $9.77 |
||
|
9
|
9
13318-422-003
Bearing.d, crank
|
13318-422-003 |
— | ||
| replacement | |||||
|
9
|
9
13318-425-003 BEARING D, CRANKSHAFT (YELLOW) |
13318-425-003 |
from US $17.14 |
||
|
9
|
9
13318-425-003 BEARING D, CRANKSHAFT (YELLOW) |
13318-425-003 |
from US $17.14 |
||
|
10
|
10
91201-300-003 Oil seal |
91201-300-003 |
from US $13.84 |
||
|
11
|
11
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
||
