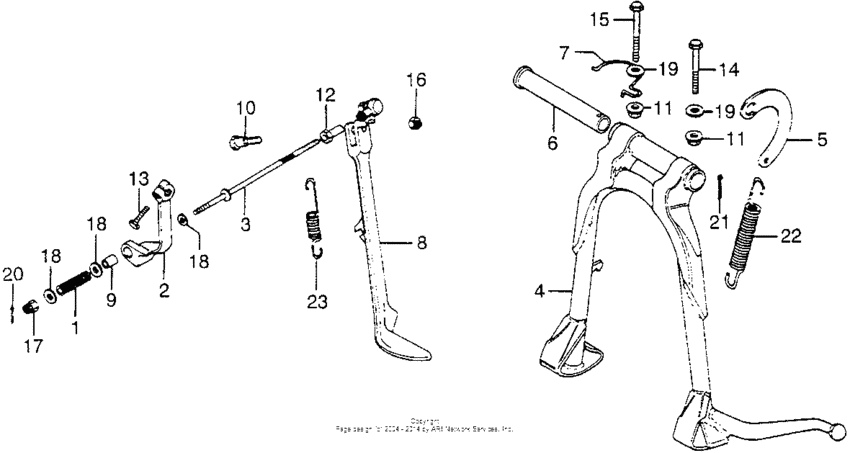

Main stand + side stand Diagram Honda CB750
- Year
- 1976
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7000001 - CB750A7007331
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-393-000
Spring
|
24701-393-000 |
— | ||
|
2
|
2
24703-393-000
Lever, neutral
|
24703-393-000 |
— | ||
|
3
|
3
24705-393-000
Bolt, tie rod
|
24705-393-000 |
— | ||
|
4
|
4
50500-392-010
Stand,main
|
50500-392-010 |
— | ||
|
5
|
5
50523-300-010 Plate main stand |
50523-300-010 |
US $8.87 |
||
|
6
|
6
50526-300-000 Pipe |
50526-300-000 |
US $16.46 |
||
|
7
|
7
50527-392-000
Guide, tube drain
|
50527-392-000 |
— | ||
|
8
|
8
50531-393-000
Bar, side stand
|
50531-393-000 |
— | ||
|
9
|
9
84705-310-000 Collar, rr. fender |
84705-310-000 |
from US $1.51 |
||
|
10
|
10
90108-283-000 Screw,pivot |
90108-283-000 |
from US $6.96 |
||
|
11
|
11
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
12
|
12
90282-393-000
Nut, tie rod
|
90282-393-000 |
— | ||
|
13
|
13
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.19 |
||
|
14
|
14
92101-08040-0A Bolt, hex., 8x40 |
92101-08040-0A |
from US $0.59 |
||
|
15
|
15
92101-08045-0A Bolt, hex., 8x45 |
92101-08045-0A |
from US $0.74 |
||
|
16
|
16
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
17
|
17
94011-06020
Nut, castle 6mm
|
94011-06020 |
— | ||
|
18
|
18
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
19
|
19
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
20
|
20
94201-12120 Pin cotter 1.2mm |
94201-12120 |
US $0.37 |
||
|
21
|
21
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.41 |
||
|
22
|
22
9501471702 Spring g, main stand |
9501471702 |
from US $3.18 |
||
|
23
|
23
9501472402 Spring d, side stand |
9501472402 |
from US $1.63 |
