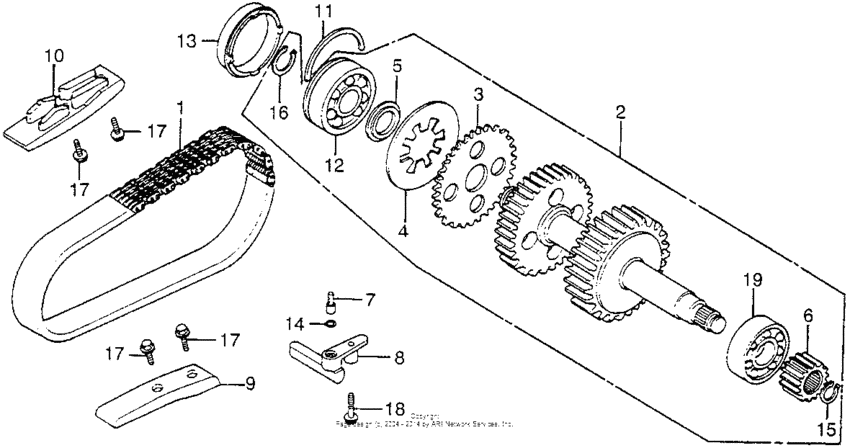

Primary chain + primary shaft Diagram Honda CB750
- Year
- 1976
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7000001 - CB750A7007331
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13610-393-004
Chain,primary.
|
13610-393-004 |
— | ||
|
2
|
2
13640-393-010
Shaft assy., primary
|
13640-393-010 |
— | ||
|
3
|
3
13642-393-300 Sub-gear (37t) |
13642-393-300 |
US $52.46 |
||
|
4
|
4
13644-393-015
Spring, primary gear
|
13644-393-015 |
— | ||
|
5
|
5
13645-393-300 Colr, primary shaft |
13645-393-300 |
US $16.05 |
||
|
6
|
6
15211-393-000
Gear (17t)
|
15211-393-000 |
— | ||
|
7
|
7
15325-393-000
Orifice, oil control
|
15325-393-000 |
— | ||
|
8
|
8
15711-393-000
Nozzle
|
15711-393-000 |
— | ||
|
9
|
9
23132-393-000
Guide,prim chain
|
23132-393-000 |
— | ||
|
10
|
10
23133-393-000
Guide,prim.chain
|
23133-393-000 |
— | ||
|
11
|
11
90601-393-000
Ring,set,56mm
|
90601-393-000 |
— | ||
|
12
|
12
91007-438-003
Bearing (63/22)
|
91007-438-003 |
— | ||
|
13
|
13
91209-393-003
Cap,seal,56x10
|
91209-393-003 |
— | ||
|
14
|
14
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
15
|
15
94510-15000 CirclipEXTERNAL, 15MM |
94510-15000 |
from US $0.44 |
||
|
16
|
16
94510-22000 CirclipEXTERNAL, 22MM |
94510-22000 |
from US $0.59 |
||
|
17
|
17
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
18
|
18
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
18
|
18
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
18
|
18
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
19
|
19
96100-6204000 Bearing, radial ball, 6204 |
96100-6204000 |
from US $6.66 |
||
