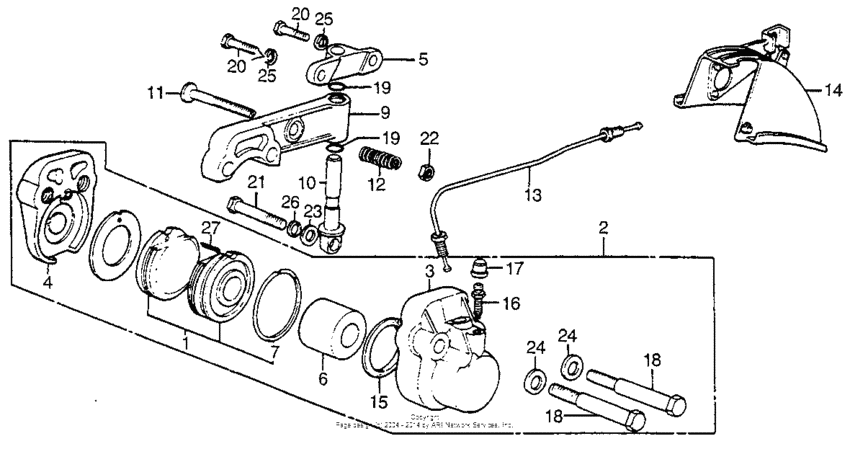

Front brake caliper Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45012-393-700 Pad set,fr.brake |
45012-393-700 |
US $132.91 |
||
|
2
|
2
45100-393-771 Caliper assy |
45100-393-771 |
US $841.43 |
||
|
3
|
3
45101-392-003
Caliper a
|
45101-392-003 |
— | ||
|
4
|
4
45102-392-003
Caliper b
|
45102-392-003 |
— | ||
|
5
|
5
45104-405-000
Joint,caliper
|
45104-405-000 |
— | ||
|
6
|
6
45107-392-003
Piston comp
|
45107-392-003 |
— | ||
|
7
|
7
45108-393-770
D-ring,46x53x3.3
|
45108-393-770 |
— | ||
|
9
|
9
45115-392-003
Holder,caliper
|
45115-392-003 |
— | ||
|
10
|
10
45116-367-690
Pin,caliper
|
45116-367-690 |
— | ||
|
11
|
11
45117-341-700 Bolt,caliper adj. |
45117-341-700 |
from US $9.27 |
||
|
12
|
12
45119-300-020 Spring caliper |
45119-300-020 |
from US $8.23 |
||
|
13
|
13
45128-393-000
Pipe, fr. brake
|
45128-393-000 |
— | ||
|
14
|
14
45140-341-670 Cover,disk |
45140-341-670 |
US $32.88 |
||
|
15
|
15
45215-533-004 Seal, dust |
45215-533-004 |
from US $18.36 |
||
|
16
|
16
45224-579-013 Valve,bleeder |
45224-579-013 |
from US $11.54 |
||
|
17
|
17
45225-579-013 Cap |
45225-579-013 |
from US $2.59 |
||
|
18
|
18
90165-323-000 Bolt,caliper |
90165-323-000 |
from US $10.36 |
||
|
19
|
19
91259-333-000 O-ring (9.5x1.7) |
91259-333-000 |
from US $4.29 |
||
|
20
|
20
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
21
|
21
92101-08035-0A Bolt, hex., 8x35 |
92101-08035-0A |
from US $0.59 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
24
|
24
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
25
|
25
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
26
|
26
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
27
|
27
94201-16220 Pin cotter 1.6mm |
94201-16220 |
from US $0.44 |
