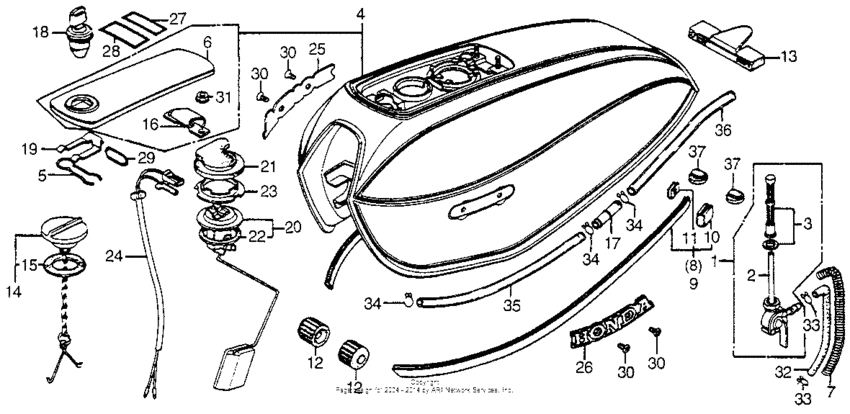

Fuel tank Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-393-015 Cock assy.,fuel |
16950-393-015 |
from US $64.35 |
||
|
2
|
2
16951-393-015
Body set,cock
|
16951-393-015 |
— | ||
|
3
|
3
16952-388-015 Screew set,strn. |
16952-388-015 |
from US $33.03 |
||
|
4
|
4
17520-393-770ZC
Tk sub, fuel *pb7c*
|
17520-393-770ZC |
— | ||
|
4
|
4
17520-393-770ZD
Tk sub, fuel *r8cs*
|
17520-393-770ZD |
— | ||
|
5
|
5
17526-390-000
Clip, filler lock
|
17526-390-000 |
— | ||
|
6
|
6
17531-405-000ZC
Lid *pb7c*
|
17531-405-000ZC |
— | ||
|
6
|
6
17531-405-000ZD
Lid *r8cs*
|
17531-405-000ZD |
— | ||
|
7
|
7
17532-405-000
Spg,fuel tube
|
17532-405-000 |
— | ||
|
8
|
8
17541-405-000
Mole,r.fuel tank
|
17541-405-000 |
— | ||
|
9
|
9
17542-405-000
Mole,l.fuel tank
|
17542-405-000 |
— | ||
|
10
|
10
17544-323-000
Clip a,tank mole
|
17544-323-000 |
— | ||
|
11
|
11
17545-323-010 Clip b,tank mole |
17545-323-010 |
from US $2.48 |
||
|
12
|
12
17611-283-010 Cushion, tank |
17611-283-010 |
from US $10.15 |
||
|
13
|
13
17613-393-770
Rub, rr. fuel tank
|
17613-393-770 |
— | ||
|
14
|
14
17620-399-010
Cap comp.,fuel ta
|
17620-399-010 |
— | ||
|
15
|
15
17631-329-003
Packing, fuel filler cap (39x58x3)
|
17631-329-003 |
— | ||
| replacement | |||||
|
15
|
15
17631-329-013 PACKING, FUEL FILLER |
17631-329-013 |
US $2.15 |
||
|
16
|
16
17735-390-000
Spring,tank lid
|
17735-390-000 |
— | ||
|
17
|
17
17738-393-000
Joint,drain tube
|
17738-393-000 |
— | ||
|
18
|
18
37220-390-007
Lock,filler lid
|
37220-390-007 |
— | ||
|
19
|
19
37221-390-000
Spring, lock set
|
37221-390-000 |
— | ||
|
20
|
20
37800-393-000
Unit assy.,fuel
|
37800-393-000 |
— | ||
|
21
|
21
37801-393-000
Cap, fuel unit
|
37801-393-000 |
— | ||
|
22
|
22
37801-689-000 PackingBASE |
37801-689-000 |
from US $4.37 |
||
|
23
|
23
37802-371-000
Retainer, fuel unit
|
37802-371-000 |
— | ||
|
24
|
24
37805-393-770
Sub-wire, fuel
|
37805-393-770 |
— | ||
|
25
|
25
87121-393-770
Emb,r.fuel tank
|
87121-393-770 |
— | ||
|
26
|
26
87122-393-770
Emb.,l.fuel tank
|
87122-393-770 |
— | ||
|
27
|
27
87509-393-670-A
Mark,riding
|
87509-393-670-A |
— | ||
|
28
|
28
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
29
|
29
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
30
|
30
93700-040-060-G ScrewOVAL, 4X6 |
93700-040-060-G |
from US $0.37 |
||
|
31
|
31
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
32
|
32
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $23.04 |
||
|
33
|
33
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
34
|
34
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
35
|
35
95003-270-4031S
*95003-27001-60m
|
95003-270-4031S |
— | ||
|
36
|
36
95003-270-553-1
V tube,9x13x550
|
95003-270-553-1 |
— | ||
|
37
|
37
9501163000 Rubber c, stand stopper |
9501163000 |
from US $1.63 |
||
