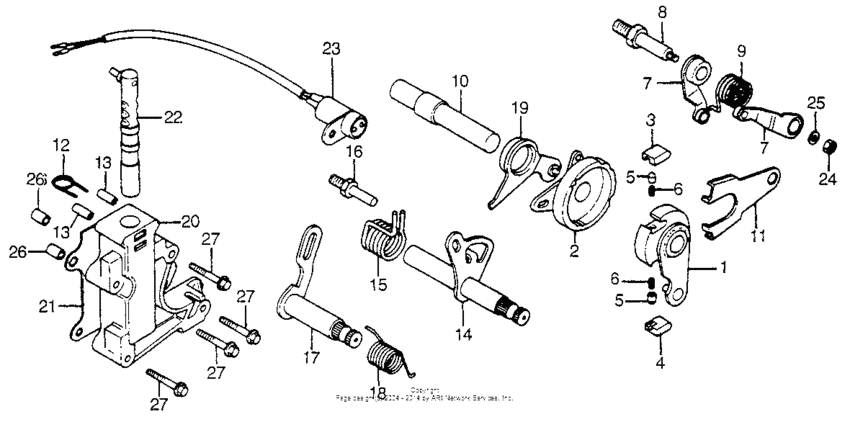

Gearshift spindle + valve body Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24310-393-000
Arm, gearshift
|
24310-393-000 |
— | ||
|
2
|
2
24320-393-020
Arm, gearshift
|
24320-393-020 |
— | ||
|
3
|
3
24324-360-000
Pawl a,ratchet
|
24324-360-000 |
— | ||
|
4
|
4
24325-360-000
Pawl b,ratchet
|
24325-360-000 |
— | ||
|
5
|
5
24326-360-010 Plunger, pawl |
24326-360-010 |
US $8.23 |
||
|
6
|
6
24329-393-000
Spring, plunger
|
24329-393-000 |
— | ||
|
7
|
7
24430-393-000
Arm, shift stopper
|
24430-393-000 |
— | ||
|
8
|
8
24434-393-000
Pivot, shift stopper
|
24434-393-000 |
— | ||
|
9
|
9
24435-393-000
Spring
|
24435-393-000 |
— | ||
|
10
|
10
24436-393-000
Pivot, gearshift
|
24436-393-000 |
— | ||
|
11
|
11
24438-393-000
Guide, ratchet
|
24438-393-000 |
— | ||
|
12
|
12
24461-PA9-010
Spring
|
24461-PA9-010 |
— | ||
|
13
|
13
24471-612-000 Roller6X16 |
24471-612-000 |
US $3.43 |
||
|
14
|
14
24610-393-000
Spindle,gear shif
|
24610-393-000 |
— | ||
|
15
|
15
24651-393-000
Spg,shift return
|
24651-393-000 |
— | ||
|
16
|
16
24652-028-000 Pin |
24652-028-000 |
from US $4.74 |
||
|
17
|
17
24710-393-000
Spindle
|
24710-393-000 |
— | ||
|
18
|
18
24713-393-010
Spring
|
24713-393-010 |
— | ||
|
19
|
19
24720-393-000
Arm a, neutral
|
24720-393-000 |
— | ||
|
20
|
20
27111-393-000
Body, valve
|
27111-393-000 |
— | ||
|
21
|
21
27112-393-000
Plate, separating
|
27112-393-000 |
— | ||
|
22
|
22
27410-393-010
Valve, manual
Use up to Engine SN 7109019 |
27410-393-010 |
— | ||
|
22
|
22
27410-393-020
Valve, manual
Use from Engine SN 7109020 |
27410-393-020 |
— | ||
|
23
|
23
35752-393-013
Switch, change
|
35752-393-013 |
— | ||
|
24
|
24
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
27
|
27
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
