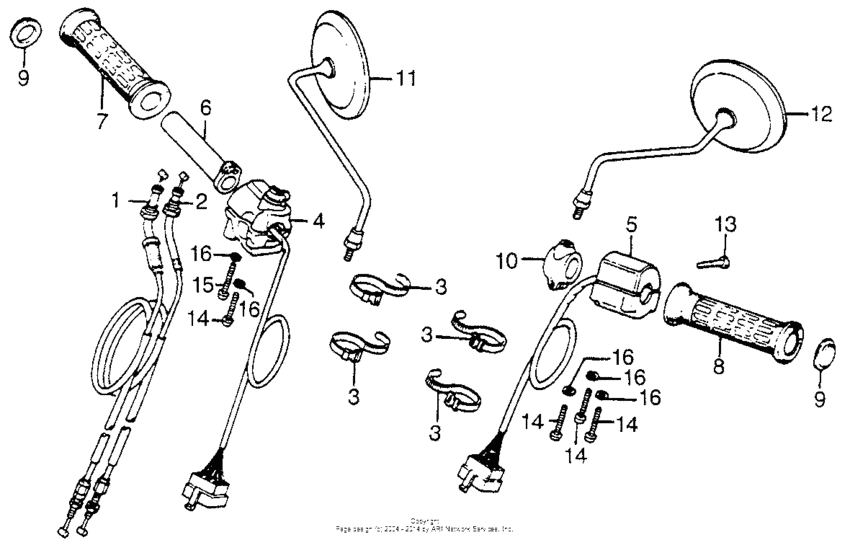

Handle grip + switch Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-393-770
Cable a,throttle
|
17910-393-770 |
— | ||
|
2
|
2
17920-393-770
Cable b,throttle
|
17920-393-770 |
— | ||
|
3
|
3
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
4
|
4
35130-393-771
Sw,starting kill
|
35130-393-771 |
— | ||
|
5
|
5
35200-393-771
Switch,winker
|
35200-393-771 |
— | ||
|
6
|
6
53141-300-010 Pipe, throttle grip |
53141-300-010 |
from US $13.87 |
||
|
7
|
7
53165-390-780 Grip,r.handle |
53165-390-780 |
from US $13.46 |
||
|
8
|
8
53166-390-780 Grip,l.handle |
53166-390-780 |
from US $13.46 |
||
|
9
|
9
53167-371-000
Cap,handle end
|
53167-371-000 |
— | ||
|
10
|
10
53173-329-690 Holder,backmirror |
53173-329-690 |
US $43.11 |
||
|
11
|
11
88110-333-611 R.back mirror |
88110-333-611 |
US $45.29 |
||
|
12
|
12
88120-333-611 L.back mirror |
88120-333-611 |
US $42.42 |
||
|
13
|
13
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
14
|
14
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
15
|
15
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
16
|
16
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
