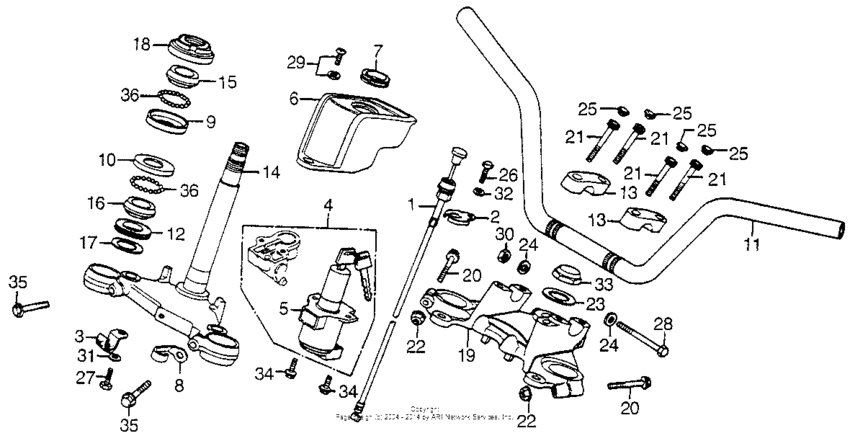

Handlebar + top bridge Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17950-404-670 Cable comp.,choke |
17950-404-670 |
US $36.34 |
||
|
2
|
2
17951-404-670
Stay,choke cable
|
17951-404-670 |
— | ||
|
3
|
3
32123-390-000
Clip,wire harness
|
32123-390-000 |
— | ||
|
4
|
4
35010-393-772
Key set
Use from Frame SN 7110052 |
35010-393-772 |
— | ||
|
4
|
4
35010-377-007
Key.set
|
35010-377-007 |
— | ||
|
5
|
5
35010-377-007
Key.set
|
35010-377-007 |
— | ||
|
6
|
6
37622-393-770
Cover,ignition sw
|
37622-393-770 |
— | ||
|
7
|
7
37623-393-770
Rubbr,ign.sw.c
|
37623-393-770 |
— | ||
|
8
|
8
45147-393-770
Clip, fr. brake hose
|
45147-393-770 |
— | ||
|
9
|
9
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
10
|
10
50302-268-010 Race, steering ball |
50302-268-010 |
from US $11.64 |
||
|
11
|
11
53100-393-770
Handlebar
|
53100-393-770 |
— | ||
|
12
|
12
53214-250-000 Dust seal |
53214-250-000 |
US $3.18 |
||
| replacements | |||||
|
12
|
12
53124-250-000 Dust-seal |
53124-250-000 |
from US $3.77 |
||
|
12
|
12
53214-K0T-J00 DUST SEAL |
53214-K0T-J00 |
from US $4.79 |
||
|
13
|
13
53131-371-000 Hldr, handle (upper) |
53131-371-000 |
from US $16.59 |
||
|
14
|
14
53200-392-000ZA
Stem,strg.*nh-1*
|
53200-392-000ZA |
— | ||
|
15
|
15
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
16
|
16
53212-250-010 Race, steering cone |
53212-250-010 |
from US $11.84 |
||
|
17
|
17
53215-250-000 Washer |
53215-250-000 |
from US $3.07 |
||
|
18
|
18
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
19
|
19
53230-405-000
Bridge,fork top
|
53230-405-000 |
— | ||
|
20
|
20
90155-369-000 Bolt,flange,7x54 |
90155-369-000 |
from US $6.81 |
||
|
21
|
21
90185-371-000 Bolt (8x32) |
90185-371-000 |
from US $4.62 |
||
|
22
|
22
90355-369-000 Nut, flange, 7mm |
90355-369-000 |
from US $5.33 |
||
|
23
|
23
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
24
|
24
90518-921-000 Washer, plain, 8mm |
90518-921-000 |
from US $0.95 |
||
|
25
|
25
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
26
|
26
92101-08016-0B Bolt, hex. (8x16) |
92101-08016-0B |
from US $0.67 |
||
|
27
|
27
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
28
|
28
93101-080-740-B
Bolt, hex. (8x74)
|
93101-080-740-B |
— | ||
|
29
|
29
93891-060-160-7 Screw-washer6X16 |
93891-060-160-7 |
from US $0.52 |
||
|
30
|
30
94001-080-200-S Nut,hex 8m/m |
94001-080-200-S |
from US $0.52 |
||
|
31
|
31
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
32
|
32
9410208200 Washer, flat (8mm) |
9410208200 |
from US $0.44 |
||
|
33
|
33
90304-415-000 Nut, steering stem |
90304-415-000 |
from US $12.58 |
||
|
34
|
34
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
35
|
35
95701-1004000 Bolt, flange, 10x40 |
95701-1004000 |
from US $0.81 |
||
|
36
|
36
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
