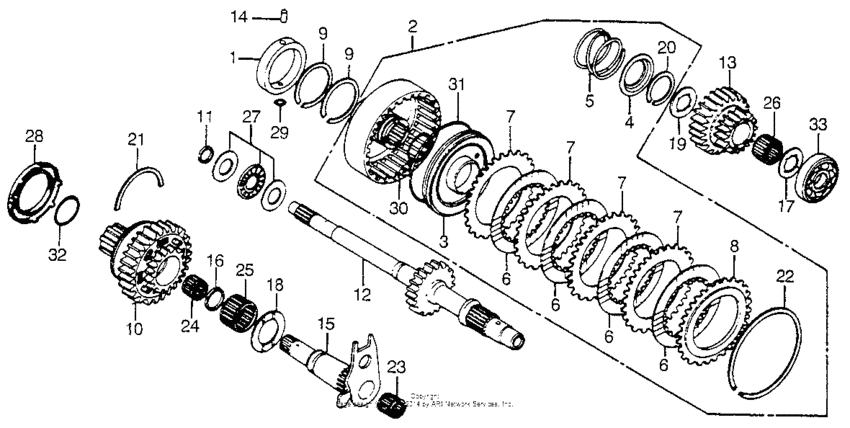

Low clutch + mainshaft Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22485-393-010
Guide, seal ring
|
22485-393-010 |
— | ||
|
2
|
2
22500-393-000
Clutch assy., low
|
22500-393-000 |
— | ||
|
3
|
3
22530-639-000
Piston comp,clutc
|
22530-639-000 |
— | ||
|
4
|
4
22533-639-000
Seat spring
|
22533-639-000 |
— | ||
|
5
|
5
22534-639-000
Spring
|
22534-639-000 |
— | ||
|
6
|
6
22535-639-505
Disk, clutch
|
22535-639-505 |
— | ||
|
7
|
7
22536-639-000
Plate clutch
|
22536-639-000 |
— | ||
|
8
|
8
22551-612-000
Plate clutch end
|
22551-612-000 |
— | ||
|
8
|
8
22552-612-000
Plate clutch end
|
22552-612-000 |
— | ||
|
8
|
8
22553-612-000
Plate clutch end
|
22553-612-000 |
— | ||
|
8
|
8
22554-612-000
Plate clutch end
|
22554-612-000 |
— | ||
|
8
|
8
22555-612-000
Plate clutch end
|
22555-612-000 |
— | ||
|
8
|
8
22556-639-000
Plate clutch end
|
22556-639-000 |
— | ||
|
9
|
9
22628-393-003
Ring (52mm)
|
22628-393-003 |
— | ||
|
10
|
10
23110-393-030
Shaft comp.,input
|
23110-393-030 |
— | ||
|
11
|
11
23122-393-003
Ring,sealing,20mm
|
23122-393-003 |
— | ||
|
12
|
12
23211-393-300
Mainshaft, trans
|
23211-393-300 |
— | ||
|
13
|
13
23411-393-000
Gear (19t & 38t)
|
23411-393-000 |
— | ||
|
14
|
14
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
15
|
15
25150-393-010
Shaft, stator
|
25150-393-010 |
— | ||
|
16
|
16
25156-393-003
Ring,sealing,30mm
|
25156-393-003 |
— | ||
|
17
|
17
90403-393-000
Washer (20x33.5x2)
|
90403-393-000 |
— | ||
|
18
|
18
90404-393-010
Washer (30x44x1.5)
|
90404-393-010 |
— | ||
|
19
|
19
90409-393-000
Washer (24x36x2)
|
90409-393-000 |
— | ||
|
20
|
20
90602-639-000 Circlip ex36 |
90602-639-000 |
US $6.30 |
||
|
21
|
21
90603-393-000
Ring (6009ns)
|
90603-393-000 |
— | ||
|
22
|
22
90608-612-000
Circlip,in
|
90608-612-000 |
— | ||
|
23
|
23
91011-393-008
Bearing (20x24x17)
|
91011-393-008 |
— | ||
|
24
|
24
91012-393-008
Bearing, needle, 26x30x17 (toyo)
|
91012-393-008 |
— | ||
|
25
|
25
91014-393-008 Brg,ndl.30x35x20 |
91014-393-008 |
US $12.83 |
||
|
26
|
26
91017-393-008
Bearing (24x28x17)
|
91017-393-008 |
— | ||
|
27
|
27
91024-393-008
Needle (20x35x4)
|
91024-393-008 |
— | ||
|
28
|
28
91204-393-003 Oil seal,53x75x8 |
91204-393-003 |
US $11.17 |
||
|
29
|
29
91301-426-010 O-ring,4.9x2.5 |
91301-426-010 |
from US $3.77 |
||
|
30
|
30
91302-639-000 O-ring32X1.9 |
91302-639-000 |
from US $2.92 |
||
|
31
|
31
91308-612-005
O ring 88x2.2
|
91308-612-005 |
— | ||
|
32
|
32
91351-642-000 O-ring (36.7x1.9) |
91351-642-000 |
from US $2.96 |
||
|
33
|
33
96120-630-401-0 B/brg rad n/com |
96120-630-401-0 |
from US $9.92 |
