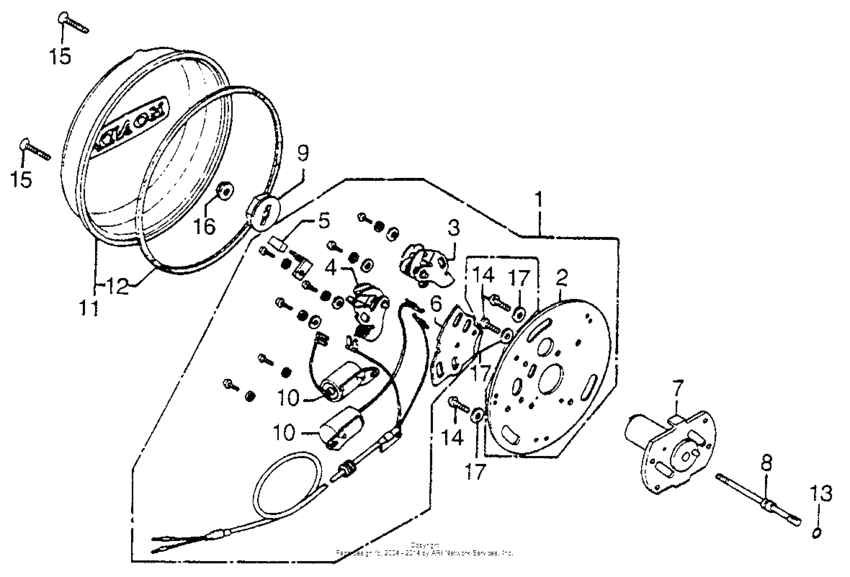

Points Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30200-323-154
Breaker,contact
|
30200-323-154 |
— | ||
|
2
|
2
30201-300-154
Plate,contact brk
|
30201-300-154 |
— | ||
|
3
|
3
30203-300-154 Cyln,contact |
30203-300-154 |
US $58.15 |
||
|
4
|
4
30204-300-154 Cyln,contact |
30204-300-154 |
from US $38.39 |
||
|
5
|
5
30205-300-154 Felt,oil |
30205-300-154 |
US $4.44 |
||
|
6
|
6
30215-300-154
Plate,shift brk.
|
30215-300-154 |
— | ||
|
7
|
7
30220-333-004
Advancer,spark
|
30220-333-004 |
— | ||
|
8
|
8
30231-300-010
Shaft,advancer
|
30231-300-010 |
— | ||
|
9
|
9
30233-300-000
Washer,special
|
30233-300-000 |
— | ||
|
10
|
10
30250-300-154 Comp,condenser |
30250-300-154 |
from US $38.52 |
||
|
11
|
11
30370-300-020 Cover,point |
30370-300-020 |
from US $77.45 |
||
|
12
|
12
30372-300-300
Gasket,point
|
30372-300-300 |
— | ||
|
13
|
13
91301-300-000
O-ring
|
91301-300-000 |
— | ||
|
14
|
14
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
15
|
15
93700-060-320-2 Screw,cross 6x32 |
93700-060-320-2 |
from US $0.74 |
||
| replacement | |||||
|
15
|
15
93700-060-320-B Screw,oval,6x32 |
93700-060-320-B |
from US $0.74 |
||
|
15
|
15
93700-060-320-B Screw,oval,6x32 |
93700-060-320-B |
from US $0.74 |
||
|
16
|
16
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
17
|
17
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.36 |
||
