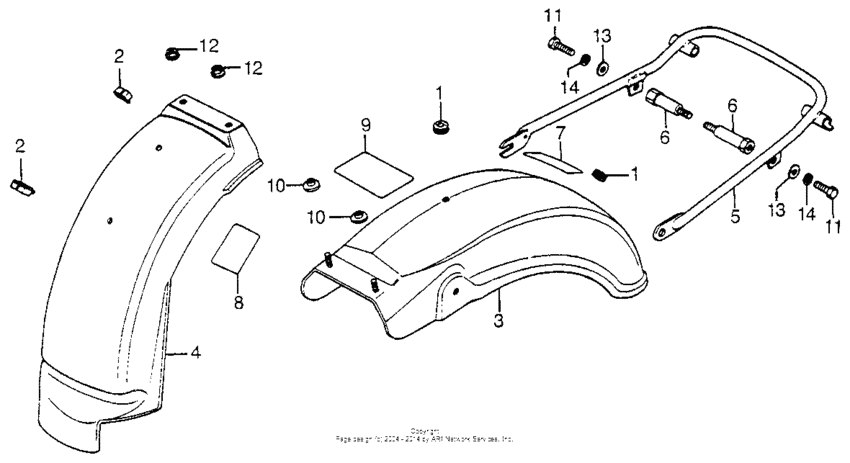

Rear fender Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32983-011-000 Grommet, harnUse up to Frame SN 7109061 |
32983-011-000 |
from US $2.81 |
||
|
1
|
1
80102-323-000 Grommet, wire cordUse from Frame SN 7109062 |
80102-323-000 |
from US $2.22 |
||
|
2
|
2
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
3
|
3
80100-393-770
Fender,rr.
|
80100-393-770 |
— | ||
|
4
|
4
80105-341-010
Fender b, rear
|
80105-341-010 |
— | ||
|
5
|
5
84100-393-770
Bumper, rr.
|
84100-393-770 |
— | ||
|
6
|
6
84102-393-000
Bolt,bumper set
|
84102-393-000 |
— | ||
|
7
|
7
87505-393-771
Mark, tire caution
|
87505-393-771 |
— | ||
|
8
|
8
87506-393-770
Mark,bat.caution
|
87506-393-770 |
— | ||
|
9
|
9
87512-371-670
Mark,caution
|
87512-371-670 |
— | ||
|
10
|
10
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
11
|
11
92101-08020-0A BoltHEX., 8X20 |
92101-08020-0A |
from US $0.52 |
||
|
12
|
12
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
13
|
13
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
14
|
14
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
