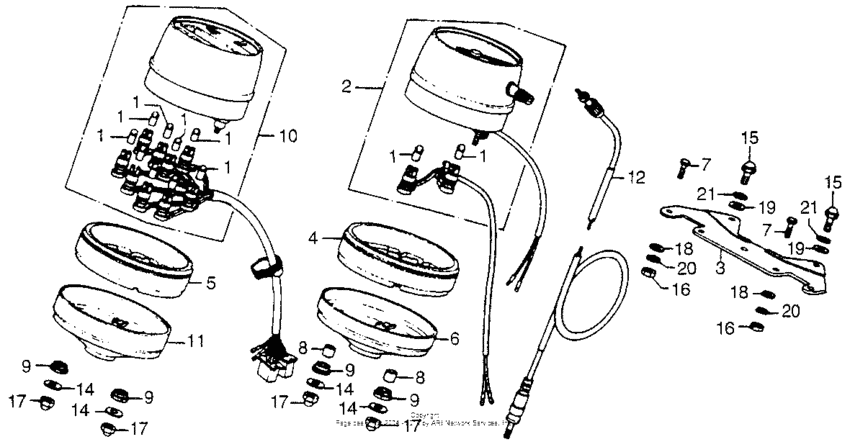

Speedometer + pilot box Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
1
|
1
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
2
|
2
37200-393-781
Speedometer assy
|
37200-393-781 |
— | ||
|
3
|
3
37211-393-770ZA Bracket, meter *nh1* |
37211-393-770ZA |
US $59.74 |
||
|
4
|
4
37235-323-700 Rubber, speedometer |
37235-323-700 |
from US $19 |
||
|
5
|
5
37235-393-000
Rubber
|
37235-393-000 |
— | ||
|
6
|
6
37236-426-000 Plate,spdmt.under |
37236-426-000 |
US $56.58 |
||
|
7
|
7
37238-323-700 Bolt (6mm) |
37238-323-700 |
US $3.03 |
||
|
8
|
8
37243-323-700 Collar |
37243-323-700 |
US $5.33 |
||
|
9
|
9
37244-307-670 Rubber |
37244-307-670 |
from US $3.55 |
||
|
10
|
10
37600-393-771
Pilot,combination
|
37600-393-771 |
— | ||
|
11
|
11
37621-393-008
Plate,pilot box
|
37621-393-008 |
— | ||
|
12
|
12
44830-426-830 Cable assy,spdmt. |
44830-426-830 |
from US $22.03 |
||
|
14
|
14
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
15
|
15
92501-08025-0A Bolt, cap, 8x25 |
92501-08025-0A |
from US $1.48 |
||
|
16
|
16
94001-060-700-S NutHEX., 6MM |
94001-060-700-S |
from US $0.44 |
||
|
17
|
17
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
18
|
18
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
19
|
19
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
20
|
20
94111-06700 WasherSPRING, 6MM |
94111-06700 |
from US $0.37 |
||
|
21
|
21
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
