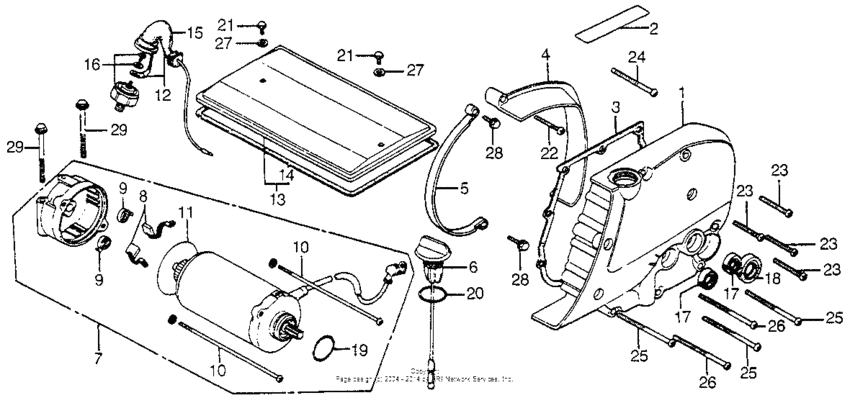

Starting motor + left side cover Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11371-393-010
Cover, l. side
|
11371-393-010 |
— | ||
|
2
|
2
11372-393-000
Plate, oil caution
|
11372-393-000 |
— | ||
|
3
|
3
11396-393-306
Gasket, l. cover
|
11396-393-306 |
— | ||
|
4
|
4
11611-393-000
Cover, rr
|
11611-393-000 |
— | ||
|
6
|
6
15650-393-000
Gauge,oil level
|
15650-393-000 |
— | ||
|
7
|
7
31200-300-030 Motor,starting |
31200-300-030 |
US $571.52 |
||
|
8
|
8
31201-292-158 Brush.set,motor |
31201-292-158 |
from US $31.88 |
||
|
9
|
9
31204-292-158 Spring, carbon brush |
31204-292-158 |
from US $6.07 |
||
|
10
|
10
31205-286-158
Set bt.gear cover
|
31205-286-158 |
— | ||
|
11
|
11
31206-402-008 O-ring (60x1.4) |
31206-402-008 |
US $11.40 |
||
|
12
|
12
31270-393-000
Wire assy., oil
|
31270-393-000 |
— | ||
|
13
|
13
31280-300-000
Cover,starter
|
31280-300-000 |
— | ||
|
14
|
14
31282-300-020
Packing cover
|
31282-300-020 |
— | ||
|
15
|
15
31283-300-000
Gromet,cord
|
31283-300-000 |
— | ||
|
16
|
16
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $20.67 |
||
|
17
|
17
91251-ZW5-003 Oil seal, 14x26x6 |
91251-ZW5-003 |
from US $3.26 |
||
|
18
|
18
91204-286-003 Oil seal (18x29x7) |
91204-286-003 |
from US $4.20 |
||
|
19
|
19
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
20
|
20
91354-371-000 O-ring (23x2) |
91354-371-000 |
from US $4.24 |
||
|
21
|
21
92101-06012-0B Bolt, hex., 6x12 |
92101-06012-0B |
from US $0.59 |
||
|
22
|
22
93500-060350A Screw, pan, 6x35 |
93500-060350A |
from US $0.52 |
||
|
23
|
23
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
24
|
24
93500-060-500-A Screw,pan,6x50 |
93500-060-500-A |
from US $0.59 |
||
|
25
|
25
93500-06100 Screw cross 6x100 |
93500-06100 |
US $2.01 |
||
|
26
|
26
93500-06120
Screw cross 6x120
|
93500-06120 |
— | ||
|
27
|
27
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
29
|
29
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
