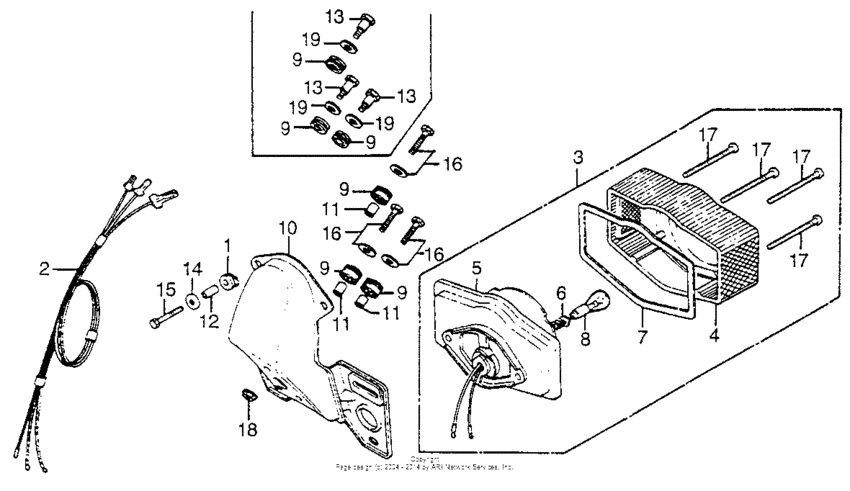

Taillight Diagram Honda CB750
- Year
- 1977
- Model code
- CB750A A
- Sales region
- USA
- Frame
- CB750A7100001 - CB750A7110560
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31403-323-000 Rubber |
31403-323-000 |
from US $5.03 |
||
|
2
|
2
32111-393-000
Sub-cord,tail
|
32111-393-000 |
— | ||
|
3
|
3
33701-341-910
Light unit,tail
|
33701-341-910 |
— | ||
|
4
|
4
33702-341-671 Lens,tail light |
33702-341-671 |
from US $56.29 |
||
|
5
|
5
33703-341-900
Base,tail light
|
33703-341-900 |
— | ||
|
6
|
6
33708-098-000 Wire, taillight |
33708-098-000 |
US $7.84 |
||
|
7
|
7
33709-341-671
Packing,tail lt.
|
33709-341-671 |
— | ||
|
8
|
8
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
9
|
9
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.29 |
||
|
10
|
10
84700-425-870
Brkt,number plate
|
84700-425-870 |
— | ||
|
12
|
12
84706-378-000
Collar,tail light
|
84706-378-000 |
— | ||
|
13
|
13
90162-283-000 Bolt, fender set. |
90162-283-000 |
from US $4.29 |
||
|
14
|
14
90581-310-000 Washer,18m/m |
90581-310-000 |
from US $2.74 |
||
|
15
|
15
92101-05025-0A Bolt, hex. (5x25) |
92101-05025-0A |
from US $0.47 |
||
|
17
|
17
93500-040-554-J Screw,pan,4x55 |
93500-040-554-J |
from US $0.44 |
||
|
18
|
18
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
19
|
19
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
